HS2C3F20C

Active

Switchcraft Inc.

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HS2C3F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Mounting Type	Material Flammability Rating	Primary Material	Voltage Rating	Contact Finish - Mating	Shielding	Insert Material	Orientation	Applications	Shell Finish	Termination	Shell Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Contact Material	Connector Type	Color	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. HS2C3F20C	Free Hanging (In-Line)	UL94 HF-1	Metal	125 VAC	Gold	Shielded	Liquid Crystal Polymer (LCP)	Keyed	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Electroless Nickel	Crimp, Solder Cup	Copper Alloy	5.49 mm	4.57 mm	0.18 in	0.216 in	IP66, IP67, IP68	Copper Alloy	Female Sockets, Plug	Silver	Push-Pull	135 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

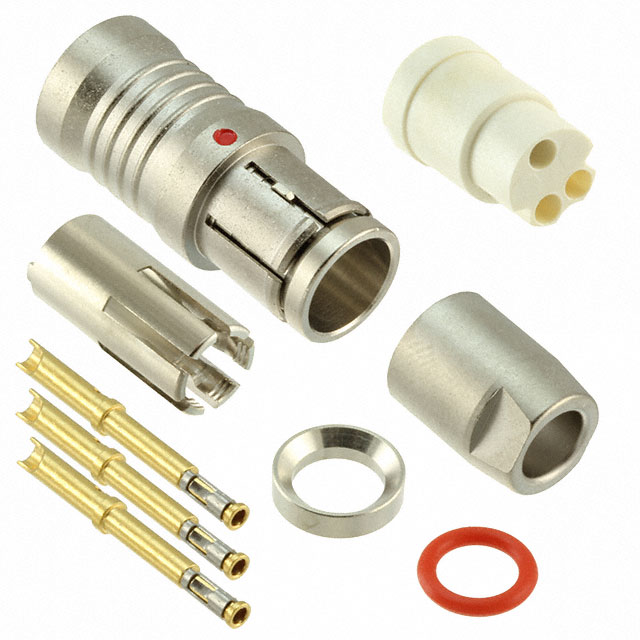

3 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
