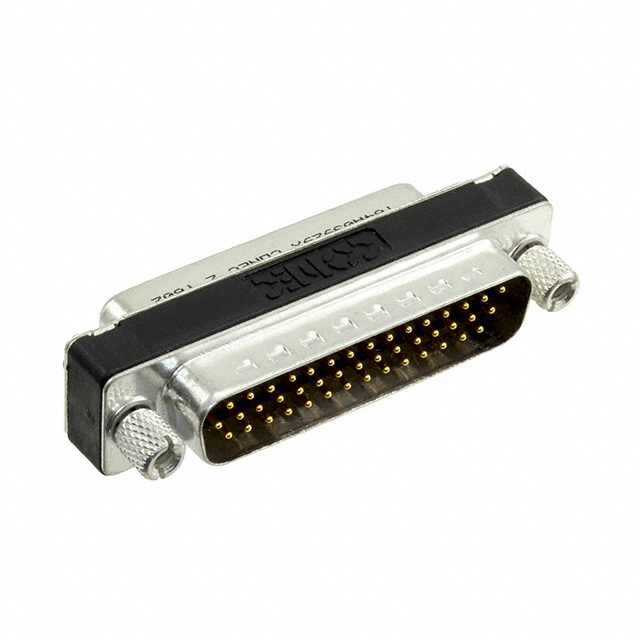

164A03929X

Active

Amphenol CONEC

CONN DSUB ADAPTER HD44F DB44M

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN DSUB ADAPTER HD44F DB44M

Technical Specifications

Parameters and characteristics for this part

Specification	164A03929X

Connector Style	Connector Saver
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Convert From (Adapter End)	D-Sub, 44 Pin Male
Current Rating (Amps)	3 A
Housing Color	Black
Includes	1 Connector, 2 Jack Screws
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Voltage Rating	60 VDC

Part	Convert From (Adapter End)	Housing Color	Convert To (Adapter End)	Material Flammability Rating	Current Rating (Amps)	Voltage Rating	Mounting Type	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Contact Finish
Amphenol CONEC 164A03939X	62 HD D-Sub Male	Black	62 HD D-Sub Female	UL94 V-0	3 A	60 VDC	Free Hanging (In-Line)	Connector Saver	8 çin	0.203 çm	3	-55 °C	125 °C	1 Connector 2 Jack Screws	Gold
Amphenol CONEC 164A03929X	D-Sub 44 Pin Male	Black		UL94 V-0	3 A	60 VDC	Free Hanging (In-Line)	Connector Saver	8 çin	0.203 çm	3	-55 °C	125 °C	1 Connector 2 Jack Screws	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Connector D-Sub, 44 HD, Female To D-Sub, 44 Pin Male Free Hanging (In-Line)
