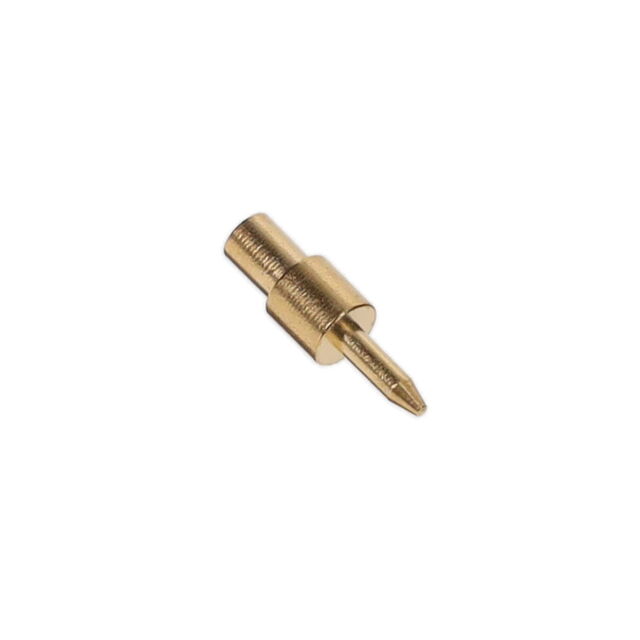

3135-1-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3135-1-00-15-00-00-08-0 |
|---|---|
| Board Thickness | 0.031 in |
| Board Thickness | 0.79 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.3 mm |
| Flange Diameter [diameter] | 0.051 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 1.91 mm |
| Length - Above Flange | 0.075 in |
| Length - Below Flange [x] | 1.3 mm |
| Length - Below Flange [x] | 0.051 in |
| Length - Overall [x] | 0.176 in |
| Length - Overall [x] | 4.47 mm |
| Mounting Hole Diameter [diameter] | 0.04 in |
| Mounting Hole Diameter [diameter] | 1.02 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
3135-1 Series
| Part | Board Thickness | Board Thickness | Terminal Style | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Material | Length - Above Flange | Length - Above Flange | Contact Finish | Length - Overall [x] | Length - Overall [x] | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.031 in | 0.79 mm | Single End | PC Pin | 0.51 mm | 0.02 in | Brass Alloy | 1.91 mm | 0.075 in | Tin-Lead | 0.176 in | 4.47 mm | Swage | 0.04 in | 1.02 mm | 1.3 mm | 0.051 in | Non-Insulated | 1.3 mm | 0.051 in | Through Hole | 200 Áin | 5.08 Ám |
Mill-Max Manufacturing Corp. | 0.031 in | 0.79 mm | Single End | PC Pin | 0.51 mm | 0.02 in | Brass Alloy | 1.91 mm | 0.075 in | Gold | 0.176 in | 4.47 mm | Swage | 0.04 in | 1.02 mm | 1.3 mm | 0.051 in | Non-Insulated | 1.3 mm | 0.051 in | Through Hole | 50 µin | 1.27 µm |
Mill-Max Manufacturing Corp. | 0.031 in | 0.79 mm | Single End | PC Pin | 0.51 mm | 0.02 in | Brass Alloy | 1.91 mm | 0.075 in | Tin | 0.176 in | 4.47 mm | Swage | 0.04 in | 1.02 mm | 1.3 mm | 0.051 in | Non-Insulated | 1.3 mm | 0.051 in | Through Hole | 200 Áin | 5.08 Ám |
Mill-Max Manufacturing Corp. | 0.031 in | 0.79 mm | Single End | PC Pin | 0.51 mm | 0.02 in | Brass Alloy | 1.91 mm | 0.075 in | Gold | 0.176 in | 4.47 mm | Swage | 0.04 in | 1.02 mm | 1.3 mm | 0.051 in | Non-Insulated | 1.3 mm | 0.051 in | Through Hole | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.52 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.32 | |||
Description
General part information
3135-1 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
