YZ-RX58-D5

Active

Honeywell Sensing and Productivity Solutions

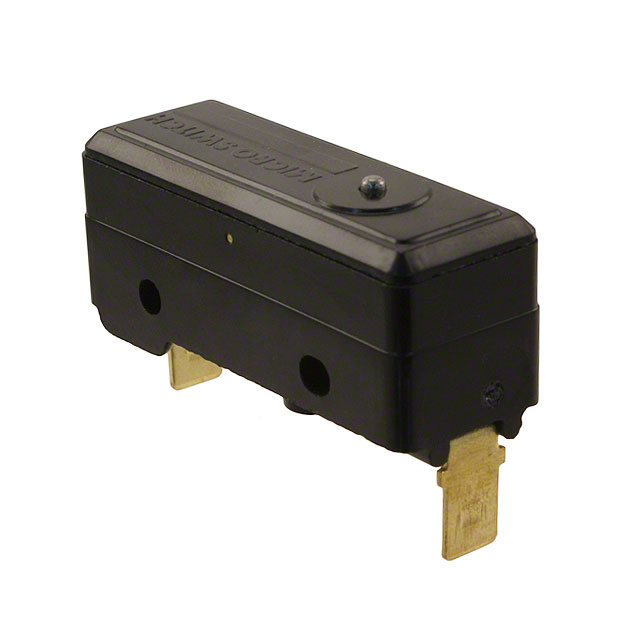

SWITCH SNAP ACT SPST-NO 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 15A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 20.01

General part information

Switch SPST-NO Chassis Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	YZ-RX58-D5	YZ-R Series

Actuator Type	Round (Pin Plunger)	Overtravel Plunger, Round (Pin Plunger)
Circuit	SPST-NO	SPST-NO
Current Rating (Amps)	500 mA, 15 A	15 - 500 A
Electrical Life	-	100000 Cycles
Features	Reset Plunger on Bottom	Reset Plunger on Bottom
Mechanical Life	20000000 Cycles	20000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	113 gf	113 gf
Operating Position	0.625 in	0.625 in
Operating Position	15.9 mm	15.9 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overtravel	0.13 mm	0.13 mm
Overtravel	0.005 in	0.005 in
Pretravel	0.012 in	0.012 in
Pretravel	0.3 mm	0.3 mm
Switch Function	Off-On	Off-Mom, Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Solder Lug, Quick Connect - 0.250" (6.3mm), Screw Terminal
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

SWITCH LARGE BASIC

Part	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Electrical Life	Mechanical Life	Actuator Type	Mounting Type	Overtravel	Overtravel	Voltage Rating - AC	Operating Force	Pretravel	Pretravel	Operating Position	Operating Position	Features	Voltage Rating - DC
Honeywell Sensing and Productivity Solutions YZ-RS	Off-Mom	15 A	85 °C	-55 °C	Solder Lug	SPST-NO	100000 Cycles	20000000 Cycles	Overtravel Plunger	Chassis Mount
Honeywell Sensing and Productivity Solutions YZ-RX58-D5	Off-On	15 A, 500 mA	85 °C	-55 °C	Quick Connect - 0.250" (6.3mm)	SPST-NO		20000000 Cycles	Round (Pin Plunger)	Chassis Mount	0.13 mm	0.005 in	125 V	113 gf	0.012 in	0.3 mm	0.625 in	15.9 mm	Reset Plunger on Bottom	125 VDC
Honeywell Sensing and Productivity Solutions YZ-RM49-A2	Off-Mom	15 A	85 °C	-55 °C	Screw Terminal	SPST-NO	100000 Cycles	20000000 Cycles	Round (Pin Plunger)	Chassis Mount
Honeywell Sensing and Productivity Solutions YZ-RX62-D584	Off-On	15 A, 500 mA	85 °C	-55 °C	Quick Connect - 0.250" (6.3mm)	SPST-NO		20000000 Cycles	Round (Pin Plunger)	Chassis Mount	0.13 mm	0.005 in	125 V	113 gf	0.012 in	0.3 mm	0.625 in	15.9 mm	Reset Plunger on Bottom	125 VDC
