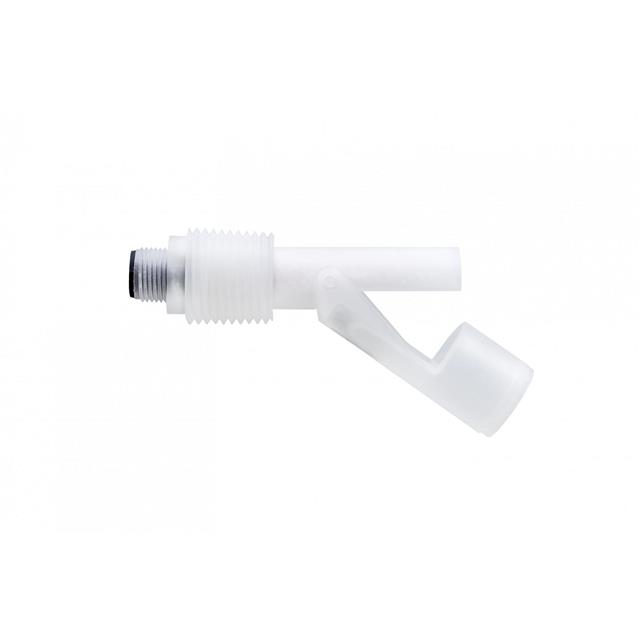

RSF84YP

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	RSF84YP

Current	600 mA
Material - Housing & Prism	Polypropylene (PP)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	Male 1/2" (12.7mm) NPT
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Output Configuration	SPST-NC/NO
Switch Actuation Level	20 mm
Switch Actuation Level	0.787 in
Type	Liquid
Voltage Rating	120 VDC, 240 VAC

Part	Current	Output Configuration	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Actuation Level	Switch Actuation Level	Minimum Liquid Specific Gravity [Min]	Voltage Rating	Material - Housing & Prism
Sensata Technologies RSF84HP	1 A	SPST-NC/NO	Liquid	Male 1/2" (12.7mm) NPT	100 °C	-20 C	20 mm	0.787 in	0.85	300 VDC 300 VAC	Polypropylene (PP)
Sensata Technologies RSF84YP	600 mA	SPST-NC/NO	Liquid	Male 1/2" (12.7mm) NPT	100 °C	-20 C	20 mm	0.787 in	0.85	120 VDC 240 VAC	Polypropylene (PP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Liquid Level Sensor Switch (Single Float) SPST-NC/NO Output Male 1/2" (12.7mm) NPT
