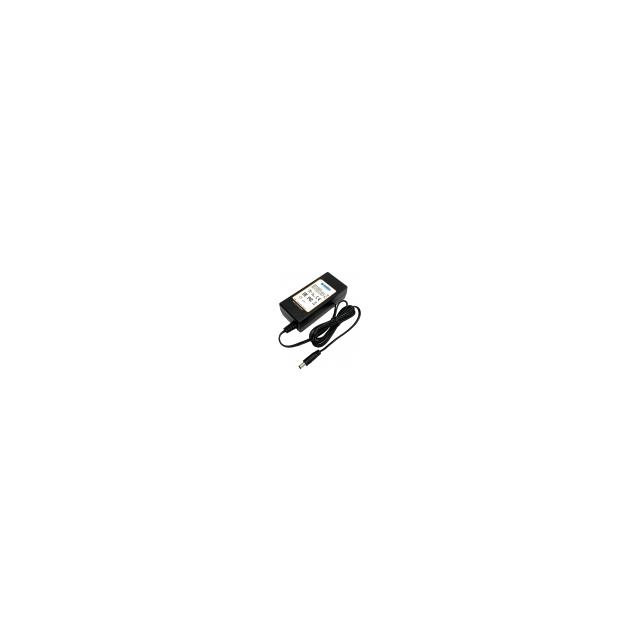

Specification	AMA65DR5L-120054Y

Applications	ITE (Commercial)
Approval Agency	UL, FCC, CE, UKCA, cULus
Cord Length	60.2 in
Current - Output (Max)	5.4 A
Efficiency	Level VI, CoC Tier 2
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	210 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug R/A
Output Connector I.D.	2.5 mm
Output Connector Length	9.5 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension Height	1.28 in
Size / Dimension Length	4.7 in
Size / Dimension Width	2.07 in
Standard Number	62368-1, 60950-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	12 V
Weight	0.661 lb

AMA65 Series

Part	Operating Temperature (Max)	Region Utilized	Applications	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Input Type	Polarization	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	No Load Power Consumption (Max)	Cord Length	Current - Output (Max)	Output Connector O.D.	Output Connector	Output Connector I.D.	Output Connector Length	Power (Watts)	Input Connector	Standard Number	Approval Agency	Efficiency	Voltage - Output	Form	Weight
aimtec AMA65DR5L-120054Y	40 °C	International	ITE (Commercial)	90 V	264 V	Cord (Sold Separately)	Positive Center	1.28 in	2.07 in	4.7 in	210 mW	60.2 in	5.4 A	5.5 mm	Barrel Plug R/A	2.5 mm	9.5 mm	65 W	IEC 320-C14	60950-1 62368-1	CE cULus FCC UKCA UL	CoC Tier 2 Level VI	12 V	Desktop (Class I)	0.661 lb
aimtec AMA65UR4-240200Y	40 °C	North America	ITE (Commercial)	90 V	264 V	Fixed Blade	Positive Center	3.41 in	1.65 in	4.15 in	210 mW	60.2 in	2 A	5.5 mm	Barrel Plug	2.1 mm	9.5 mm	48 W	NEMA 1-15P	62368-1	CE FCC UL	CoC Tier 2 Level VI	24 V	Wall Mount (Class II)	0.661 lb
aimtec AMA65UR5-120500Y	40 °C	North America	ITE (Commercial)	90 V	264 V	Fixed Blade	Positive Center	3.41 in	1.65 in	4.15 in	210 mW	60.2 in	5 A	5.5 mm	Barrel Plug	2.5 mm	9.5 mm	60 W	NEMA 1-15P	62368-1	CE FCC UL	CoC Tier 2 Level VI	12 V	Wall Mount (Class II)	0.661 lb
aimtec AMA65UR4-120500Y	40 °C	North America	ITE (Commercial)	90 V	264 V	Fixed Blade	Positive Center	3.41 in	1.65 in	4.15 in	210 mW	60.2 in	5 A	5.5 mm	Barrel Plug	2.1 mm	9.5 mm	60 W	NEMA 1-15P	62368-1	CE FCC UL	CoC Tier 2 Level VI	12 V	Wall Mount (Class II)	0.661 lb
