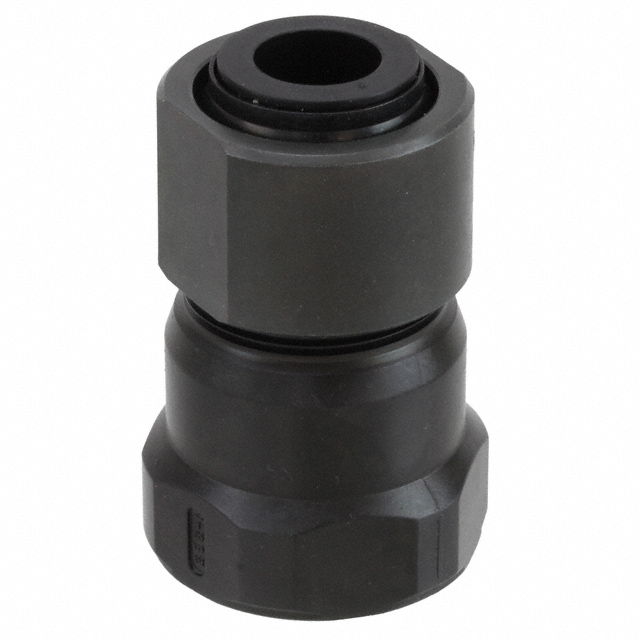

Specification	JL05-28EB3B-(17)-R

Cable Exit Angle	180 °
Cable Opening	0.65 in
Color	Black
Diameter - Outside	1.85 in
Features	Sleeve, Bushing
For Use With/Related Products	JL05 Series Connectors
Includes	Screws, O-Ring, Bushings, Backshell, Sleeve, Compression Nut
Includes Total Count	8 pcs
Ingress Protection	Weatherproof
Material	Aluminum Alloy
Plating	Zinc
Shell Size - Insert	28
Shell Size - Insert	28
Thread Pitch (TPI)	18 TPI
Thread Size (Class)	UNEF
Thread Size (Nominal)	1.625 in
Type	Backshell

JL05-28E Series

Part	Includes	Includes Total Count	For Use With/Related Products	Color	Cable Opening	Diameter - Outside	Cable Exit Angle	Type	Thread Size (Class)	Thread Size (Nominal)	Thread Pitch (TPI)	Shell Size - Insert	Shell Size - Insert	Plating	Material	Ingress Protection	Features
JAE Electronics JL05-28EB2A-R	Backshell Set Screw	2 pcs	JL05 Series Connectors	Black	1.295 in	1.85 in	180 °	Backshell	UNEF-2B	1.625 in	18 TPI	28	28	Zinc	Aluminum Alloy
JAE Electronics JL05-28EB8A-R	Backshell Set Screw	2 pcs	JL05 Series Connectors			1.85 in	180 °	Backshell	UNEF-2B	1.625 in	18 TPI	28	28
JAE Electronics JL05-28EB1A-R	Backshell Set Screw	2 pcs	JL05 Series Connectors	Black	1.295 in	1.85 in	180 °	Backshell	UNEF-2B	1.625 in	18 TPI	28	28	Zinc	Aluminum Alloy
JAE Electronics JL05-28EB3B-(17)-R	Backshell Bushings Compression Nut O-Ring Screws Sleeve	8 pcs	JL05 Series Connectors	Black	0.65 in	1.85 in	180 °	Backshell	UNEF	1.625 in	18 TPI	28	28	Zinc	Aluminum Alloy	Weatherproof	Bushing Sleeve
