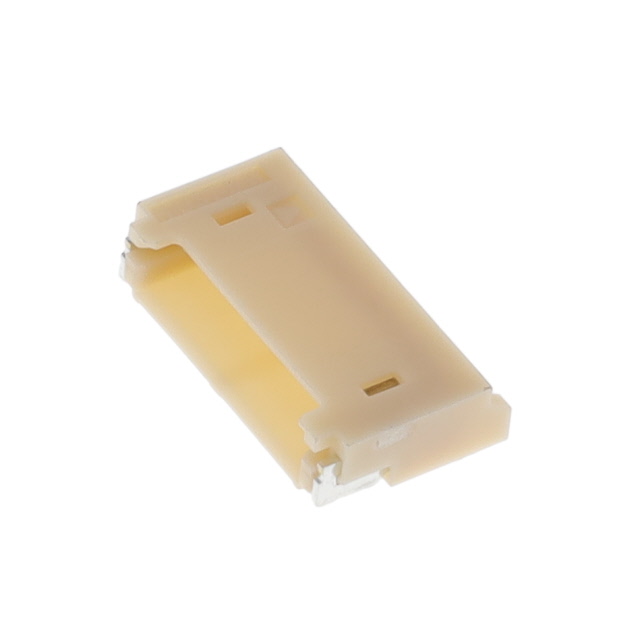

SM02(8.0)B-BHS-1N-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 2POS 8MM
Deep-Dive with AI
Search across all available documentation for this part.
SM02(8.0)B-BHS-1N-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 2POS 8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM02(8.0)B-BHS-1N-TB |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 3.2 mm |
| Insulation Height | 0.126 in |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.315 in |
| Pitch - Mating | 8 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 V |
