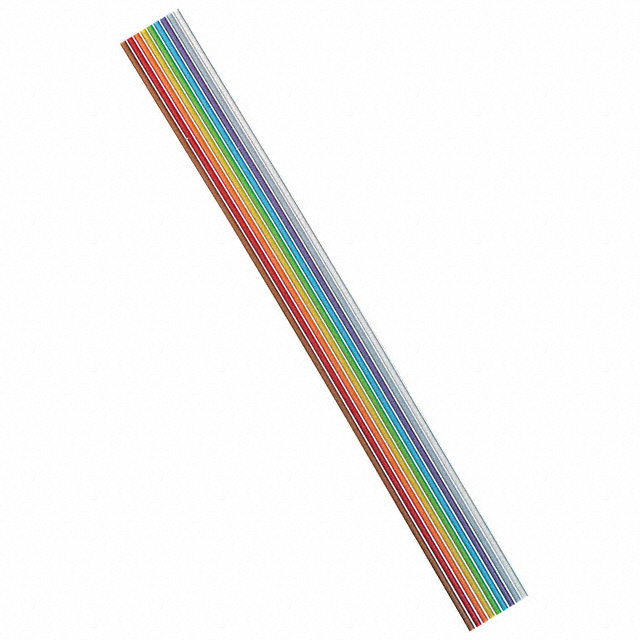

AWG28-9/F/300

Unknown

Assmann WSW Components

CBL RIBN 9COND 0.05 MULTIPLE 25'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 9COND 0.05 MULTIPLE 25'

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Resistance	Jacket Color	Shielding	Length	Length	Ratings	Spool Size	Spool Size	Pitch [x]	Pitch [x]	Cable Type	Operating Temperature	First Conductor Mark	Length [x]	Length [x]	Voltage	Ribbon Thickness	Ribbon Thickness	Conductor Material	Ribbon Width	Ribbon Width	Number of Conductors	Wire Gauge	Jacket (Insulation) Material	Length	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Assmann WSW Components AWG28-9/G/300	100 MOhms	Gray	Unshielded	25 ft 50 ft	7.62 m 15.24 m	UL Style 2651	300 ft	91.44 m	0.05 in	1.27 mm	Flat Cable	105 C	Red	3.05 m	10 ft	300 V	0.89 mm	0.035 in	Copper Tinned	11.43 mm	0.45 in	9	28 AWG	Poly-Vinyl Chloride (PVC)	Enter Number of Feet in Order Quantity	7	36 AWG	105 ░C	-10 °C
Assmann WSW Components AWG28-9/F/300	100 MOhms	Multiple	Unshielded	25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m	UL Style 2651			0.05 in	1.27 mm	Flat Cable	105 C	Red	3.05 m	10 ft	300 V	0.89 mm	0.035 in	Copper Tinned	11.43 mm	0.45 in	9	28 AWG	Poly-Vinyl Chloride (PVC)		7	36 AWG	105 ░C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Multiple 9 Conductors 0.050" (1.27mm) Flat Cable 25.0' (7.62m)
