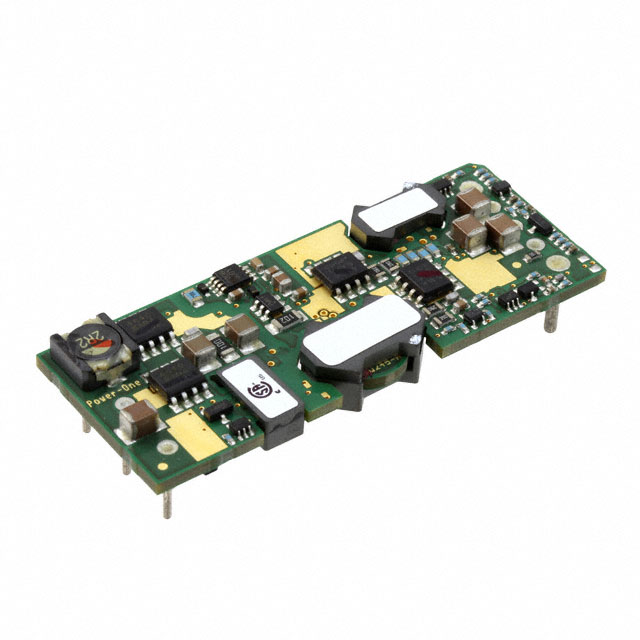

SQ24T10050-NBA0G

Active

Bel Power Solutions

DC DC CONVERTER 5V 50W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 5V 50W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SQ24T10050-NBA0G	SQ24T10050 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	10 A	10 A
Efficiency	86 %	86 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-DIP Module, 1/8 Brick	Eighth Brick, 8-DIP Module, 1/8 Brick
Power (Watts)	50 W	50 W
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [y]	22.9 mm	22.8 - 22.9 mm
Size / Dimension [z]	7 mm	7 - 7.6 mm
Size / Dimension [z]	0.27 "	0.27 - 0.3 "
Supplier Device Package	-	Eighth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	18 V	18 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	5 V	5 V

MODULE DC-DC 24VIN 1-OUT 5V 10A 50W 8-PIN 1/8-BRICK

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Power (Watts)	Features	Type	Current - Output (Max) [Max]	Applications	Voltage - Output 1	Efficiency	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Supplier Device Package	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Control Features
Bel Power Solutions SQ24T10050-PEC0G	0.9 "	2.3 in	58.4 mm	22.8 mm	0.3 "	7.6 mm	36 V	50 W	OCP, OTP, OVP, Remote On/Off, UVLO	Isolated Module	10 A	ITE (Commercial)	5 V	86 %	2000 V	85 °C	-40 °C	1	Eighth Brick	Through Hole	18 V	Eighth Brick
Bel Power Solutions SQ24T10050-NBA0G	0.9 "	2.3 in	58.4 mm	22.9 mm	0.27 "	7 mm	36 V	50 W	OCP, OTP, OVP, Remote On/Off, UVLO	Isolated Module	10 A	ITE (Commercial)	5 V	86 %	2000 V	85 °C	-40 °C	1		Through Hole	18 V	1/8 Brick, 8-DIP Module	Active Low, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	288	$ 76.85

General part information

Isolated Module DC DC Converter 1 Output 5V 10A 18V - 36V Input

Technical documentation and resources

No documents available
