H3CWH-2618M

Active

Assmann WSW Components

IDC CBL - HHKC26H/AE26M/HHPL26H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKC26H/AE26M/HHPL26H

Technical Specifications

Parameters and characteristics for this part

Specification	H3CWH-2618M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Polarizing Key (Socket), Polarizing Key (Plug), Flange
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Shielding	Features	Contact Finish	Number of Positions	Contact Finish Thickness	Cable Termination	Connector Type	Number of Rows	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length	Length	Length	Color
Assmann WSW Components H3CWH-2636G	Unshielded	Flange Polarizing Key (Plug) Polarizing Key (Socket)	Gold	26	Flash	IDC	Socket to Plug	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm
Assmann WSW Components H3CWH-2606G	Unshielded	Flange Polarizing Key (Plug) Polarizing Key (Socket)	Gold	26	Flash	IDC	Socket to Plug	2			0.05 "	1.27 mm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
Assmann WSW Components H3CWH-2618G	Unshielded	Flange Polarizing Key (Plug) Polarizing Key (Socket)	Gold	26	Flash	IDC	Socket to Plug	2	1.5 ft	457.2 mm	0.05 "	1.27 mm	0.1 in	2.54 mm
Assmann WSW Components H3CWH-2636M	Unshielded	Flange Polarizing Key (Plug) Polarizing Key (Socket)	Gold	26	Flash	IDC	Socket to Plug	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm				Multiple Ribbon
Assmann WSW Components H3CWH-2618M	Unshielded	Flange Polarizing Key (Plug) Polarizing Key (Socket)	Gold	26	Flash	IDC	Socket to Plug	2	1.5 ft	457.2 mm	0.05 "	1.27 mm	0.1 in	2.54 mm				Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

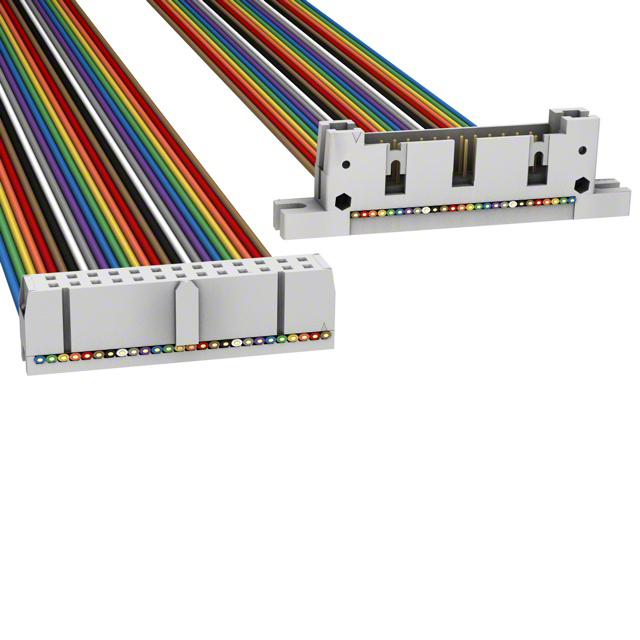

26 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
