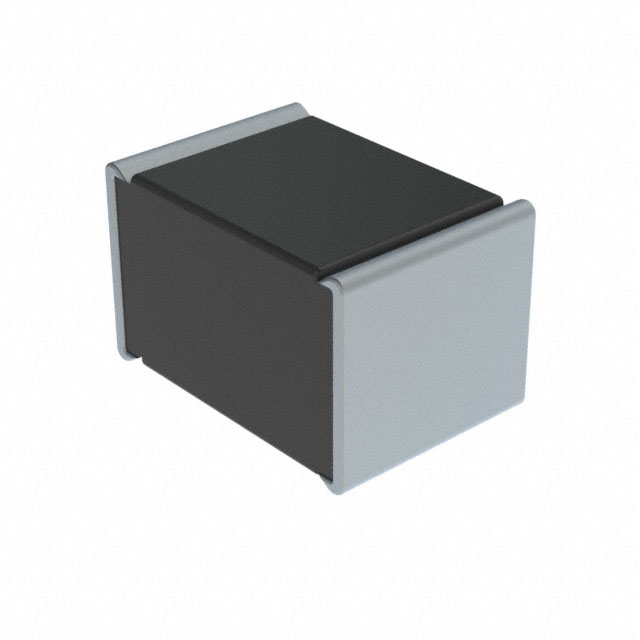

SMDTD02470KA00KS00

Active

WIMA

CAP FILM 0.047UF 10% 63VAC 1812

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMDTD02470KA00KS00

Active

WIMA

CAP FILM 0.047UF 10% 63VAC 1812

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 0.59
		100	$ 0.48
		200	$ 0.45
		500	$ 0.42
		6000	$ 0.29

Description

General part information

SMDTD0 Series

0.047 µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized 1812 (4532 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMDTD02470KA00KS00	SMDTD0 Series

Applications	General Purpose, DC Link, DC Filtering	General Purpose, DC Link, DC Filtering
Capacitance	-	0.022 - 100000 pF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max)	-	0.169 - 0.287 "
Height - Seated (Max)	-	4.3 - 7.3 mm
Height - Seated (Max) [Max] [z]	0.13 "	0.13 - 0.209 "
Height - Seated (Max) [Max] [z]	3.3 mm	3.3 - 5.3 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1812 (4532 Metric)	1812 (4532 Metric), 2220, 2824, 4030, 5040, 6054
Package / Case	-	5750 Metric, 10276 Metric, 127102 Metric, 153137 Metric
Size / Dimension	-	5.1 mm
Size / Dimension	-	0.5 "
Size / Dimension	-	0.402 "
Size / Dimension [x]	0.189 "	0.189 - 0.602 "
Size / Dimension [x]	4.8 mm	4.8 - 15.3 mm
Size / Dimension [y]	0.13 in	0.13 - 0.539 in
Size / Dimension [y]	3.3 mm	3.3 - 13.7 mm
Termination	Solder Pads	Solder Pads
Tolerance	10 %	10 - 20 %
Voltage Rating - AC	63 V	63 V
Voltage Rating - DC	100 V	100 V

SMDTD0 Series

CAP FILM 0.047UF 10% 63VAC 1812

...

Part	Voltage Rating - AC	Termination	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Applications	Tolerance	Package / Case	Capacitance	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
WIMA SMDTD02470KA00KS00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.13 "	3.3 mm	100 V	-55 °C	125 °C	0.13 in	3.3 mm	0.189 "	4.8 mm	Surface Mount	DC Filtering, DC Link, General Purpose	10 %	1812 (4532 Metric)
WIMA SMDTD02100KA00MP00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.13 "	3.3 mm	100 V	-55 °C	125 °C	0.13 in	3.3 mm	0.189 "	4.8 mm	Surface Mount	DC Filtering, DC Link	20 %	1812 (4532 Metric)	10000 pF
WIMA SMDTD02150QA00MS00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)			100 V	-55 °C	125 °C	0.201 "		0.224 in	5.7 mm	Surface Mount	DC Filtering, DC Link	20 %	2220	15000 pF	5.1 mm	5750 Metric
WIMA SMDTD02220QA00KQ00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)			100 V	-55 °C	125 °C	0.201 "		0.224 in	5.7 mm	Surface Mount	DC Filtering, DC Link	10 %	2220	0.022 µF	5.1 mm	5750 Metric
WIMA SMDTD02330KA00MP00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.13 "	3.3 mm	100 V	-55 °C	125 °C	0.13 in	3.3 mm	0.189 "	4.8 mm	Surface Mount	DC Filtering, DC Link	20 %	1812 (4532 Metric)	0.033 çF
WIMA SMDTD03220KB00MP00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)			100 V	-55 °C	125 °C	0.13 in	3.3 mm	0.189 "	4.8 mm	Surface Mount	DC Filtering, DC Link	20 %	1812 (4532 Metric)	0.22 µF			0.169 "	4.3 mm
WIMA SMDTD02330KA00KP00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.13 "	3.3 mm	100 V	-55 °C	125 °C	0.13 in	3.3 mm	0.189 "	4.8 mm	Surface Mount	DC Filtering, DC Link	10 %	1812 (4532 Metric)	0.033 çF
WIMA SMDTD02150TA00MS00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.13 "	3.3 mm	100 V	-55 °C	125 °C	0.24 "	6.1 mm	0.283 in	7.2 mm	Surface Mount	DC Filtering, DC Link	20 %	2824	15000 pF
WIMA SMDTD02220KA00KS00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.13 "	3.3 mm	100 V	-55 °C	125 °C	0.13 in	3.3 mm	0.189 "	4.8 mm	Surface Mount	DC Filtering, DC Link	10 %	1812 (4532 Metric)	0.022 µF
WIMA SMDTD03470QB00KS00	63 V	Solder Pads	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.189 "	4.8 mm	100 V	-55 °C	125 °C	0.201 "		0.224 in	5.7 mm	Surface Mount	DC Filtering, DC Link, General Purpose	10 %	2220	0.47 µF	5.1 mm	5750 Metric
