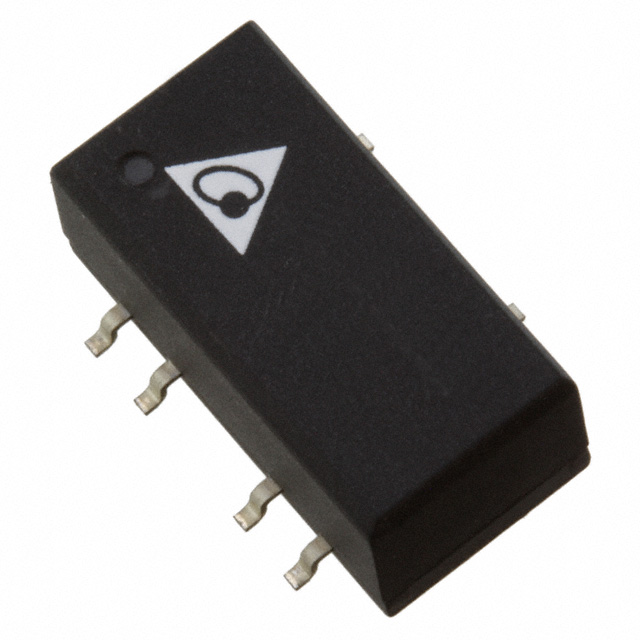

SH01D0512A

Obsolete

Delta Electronics

DC DC CONVERTER +/-12V 1W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER +/-12V 1W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER +/-12V 1W

Part	Number of Outputs	Applications	Mounting Type	Package / Case	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Type	Features
Delta Electronics SH01D0512A	2	Medical	Surface Mount	8-SMD Module, 5 Leads	12 V	4.5 V	1.5 kV	-12 V	85 °C	-40 °C	5.5 V	78 %	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	42 mA	42 mA	Isolated Module	SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
