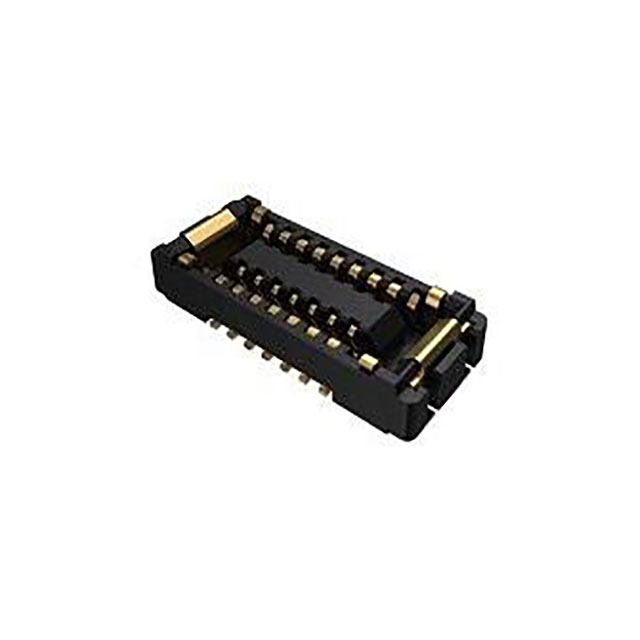

101R014FB110 - 101R014FB110

101R014FB110

Active
Amphenol ICC (FCI)

MICRO BTB CONNECTOR, P=0.35MM, S

Deep-Dive with AI

DocumentsIS.EQC.157 Prod Spec101R014FB110+1

Technical Specifications

Parameters and characteristics for this part

Specification101R014FB110
Connector TypeReceptacle, Center Strip Contacts
Contact FinishGold
Contact Finish ThicknessFlash
FeaturesSolder Retention
Height Above Board [z]0.8 mm
Height Above Board [z]0.031 in
Mated Stacking Heights1 mm
Mounting TypeSurface Mount
Number of Positions14
Number of Rows2
Pitch [x]0.35 mm
Pitch [x]0.014 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.50
10$ 0.38
25$ 0.34
50$ 0.32
100$ 0.29
250$ 0.27
500$ 0.26
1000$ 0.25
Digi-Reel® 1$ 0.50
10$ 0.38
25$ 0.34
50$ 0.32
100$ 0.29
250$ 0.27
500$ 0.26
1000$ 0.25
Tape & Reel (TR) 8000$ 0.23

Description

General part information

101R014 Series

14 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
