TN3050H-12WY
Active1200 V, 30 A AUTOMOTIVE GRADE AEC-Q101 SCR THYRISTOR
Deep-Dive with AI
Search across all available documentation for this part.
TN3050H-12WY
Active1200 V, 30 A AUTOMOTIVE GRADE AEC-Q101 SCR THYRISTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TN3050H-12WY | TN3050H-12WY Series |
|---|---|---|
| Current - Gate Trigger (Igt) (Max) | - | 50 mA |
| Current - Hold (Ih) (Max) | - | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | 300 - 330 A |
| Current - Off State (Max) | - | 5 µA |
| Current - On State (It (AV)) (Max) | - | 19 A |
| Current - On State (It (RMS)) (Max) | - | 30 A |
| Grade | - | Automotive |
| Mounting Type | - | Through Hole |
| null | - | |
| Operating Temperature | - | 150 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | TO-247-3 |
| Qualification | - | AEC-Q101 |
| SCR Type | - | Sensitive Gate |
| Supplier Device Package | - | TO-247-3 |
| Voltage - Gate Trigger (Vgt) (Max) | - | 1.3 V |
| Voltage - Off State | - | 1.2 kV |
| Voltage - On State (Vtm) (Max) | - | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TN3050H-12WY Series
1200 V, 30 A Automotive Grade AEC-Q101 SCR Thyristor
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - On State (Vtm) (Max) | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | SCR Type | Voltage - Off State | Package / Case | Current - Off State (Max) [Max] | Supplier Device Package | Current - On State (It (RMS)) (Max) [Max] | Current - Hold (Ih) (Max) [Max] | Grade | Current - Non Rep. Surge 50, 60Hz (Itsm) | Qualification | Current - On State (It (AV)) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TN3050H-12WY | |||||||||||||||||
STMicroelectronics TN3050H-12WY | 150 °C | -40 °C | Through Hole | 1.65 V | 1.3 V | 50 mA | Sensitive Gate | 1.2 kV | TO-247-3 | 5 µA | TO-247-3 | 30 A | 100 mA | Automotive | 300 A, 330 A | AEC-Q101 | 19 A |
STMicroelectronics TN3050H-12WY |
Description
General part information
TN3050H-12WY Series
The TN3050H-12WY is an automotive grade SCR Thyristor designed for applications such as automotive on-board chargers, solid state AC relays and stationary battery chargers.
This SCR Thyristor, rated for a 30 A RMS power switching, offers superior performance in peak voltage robustness up to 1400 V and surge current handling up to 300 A sine wave pulse. Its key features allow the design of functions such as a 42 A RMS AC switch (dual back-to-back SCRs) and a 38 A average AC-DC controlled rectifier bridge for inrush current limitation.

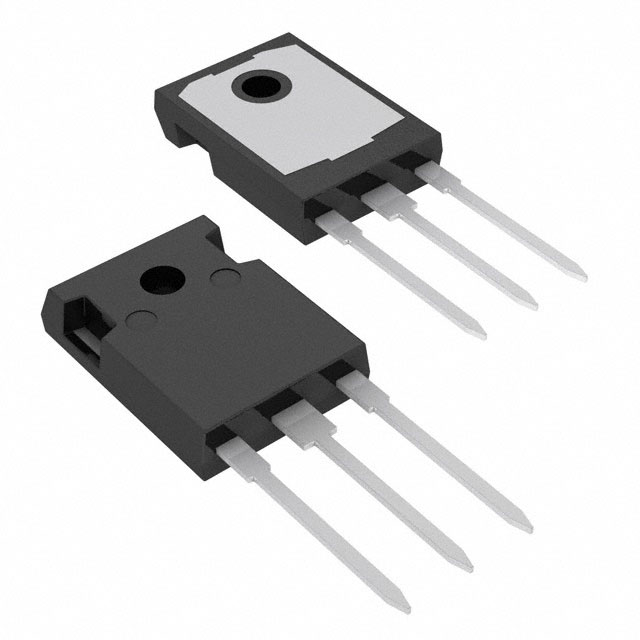

Available in through-hole TO-247 package, this power package allows a thermal operation up to 30 A RMS with a higher case temperature of 126 °C.
