MSM19-NX00A10-SNCSNCNF-RI0RD024-Q0000-S

Active

SCHURTER Inc.

MSM 19, METAL SWITCH, 100 MA SWI

Deep-Dive with AI

Search across all available documentation for this part.

MSM19-NX00A10-SNCSNCNF-RI0RD024-Q0000-S

Active

SCHURTER Inc.

MSM 19, METAL SWITCH, 100 MA SWI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.52

Description

General part information

MSM19-NX Series

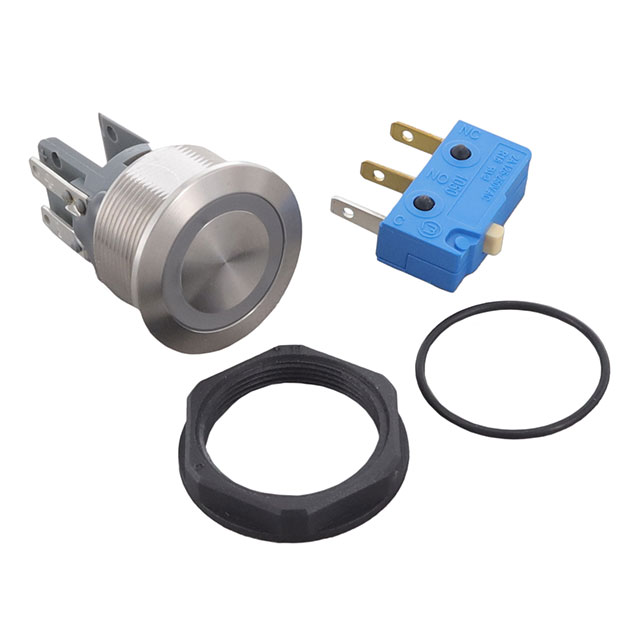

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MSM19-NX00A10-SNCSNCNF-RI0RD024-Q0000-S	MSM19-NX Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT, DPDT
Color - Actuator/Cap	Silver	Silver, Clear
Current Rating (Amps)	100 mA	5 - 100 A
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Features	-	Ceramic Actuator
Illumination Type, Color	Red, LED	Red, LED, Blue, Green
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	-	125 - 250 V
Voltage Rating - DC	30 V	30 V

MSM19-NX Series

MSM 19, METAL SWITCH, 10 A SWITC

Part	Termination Style	Electrical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Mechanical Life	Circuit	Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Ingress Protection	Illumination Voltage (Nominal)	Actuator Type	Mounting Type	Color - Actuator/Cap	Current Rating (Amps)	Illumination Type, Color	Actuator Marking	Voltage Rating - DC	Features
SCHURTER Inc. MSM19-NX0010A-SNCSNCNF-RI0RD024-Q0000-S	Quick Connect - 0.110" (2.8mm)	50000 Cycles	19.1 mm	250 V	1500000 Cycles	SPDT	Anti-Vandal, Illuminated	-25 °C	85 °C	On-Mom	IP40	24 V	Button, Flush, Round	Panel Mount, Front	Silver	10 A	LED, Red	No Marking
SCHURTER Inc. MSM19-NX00A10-SNCSNCNF-RI0RD024-Q0000-S	Quick Connect - 0.110" (2.8mm)	200000 Cycles	19.1 mm		1500000 Cycles	SPDT	Anti-Vandal, Illuminated	-25 °C	85 °C	On-Mom	IP40	24 V	Button, Flush, Round	Panel Mount, Front	Silver	100 mA	LED, Red	No Marking	30 V
SCHURTER Inc. MSM19-NXCSA10-SNCCWTNF-AIRGB024-Q0000-S	Quick Connect - 0.110" (2.8mm)	200000 Cycles	19.1 mm		1500000 Cycles	SPDT	Anti-Vandal, Illuminated	-25 °C	85 °C	On-Mom	IP40	24 V	Button, Flush, Round	Panel Mount, Front	Clear	100 mA	Blue, Green, LED, Red	No Marking	30 V	Ceramic Actuator
SCHURTER Inc. MSM19-NX0005A-SNCSNCNF-RI0RD024-Q0000-S	Quick Connect - 0.110" (2.8mm)	200000 Cycles	19.1 mm	125 V	1500000 Cycles	SPDT	Anti-Vandal, Illuminated	-25 °C	85 °C	On-Mom	IP40	24 V	Button, Flush, Round	Panel Mount, Front	Silver	5 A	LED, Red	No Marking
SCHURTER Inc. MSM19-NXDP05A-SNCSNCNF-RI0BL024-Q0000-S	Quick Connect - 0.110" (2.8mm)	200000 Cycles	19.1 mm	125 V	1500000 Cycles	DPDT	Anti-Vandal, Illuminated	-25 °C	85 °C	On-Mom	IP40	24 V	Button, Flush, Round	Panel Mount, Front	Silver	5 A	Blue, LED	No Marking
SCHURTER Inc. MSM19-NX0010A-SNCSNCNF-RI0BL024-Q0000-S	Quick Connect - 0.110" (2.8mm)	50000 Cycles	19.1 mm	250 V	1500000 Cycles	SPDT	Anti-Vandal, Illuminated	-25 °C	85 °C	On-Mom	IP40	24 V	Button, Flush, Round	Panel Mount, Front	Silver	10 A	Blue, LED	No Marking
SCHURTER Inc. MSM19-NXCS10A-SNCCWTNF-AIRGB024-Q0000-S	Quick Connect - 0.110" (2.8mm)	50000 Cycles	19.1 mm	250 V	1500000 Cycles	SPDT	Anti-Vandal, Illuminated	-25 °C	85 °C	On-Mom	IP40	24 V	Button, Flush, Round	Panel Mount, Front	Clear	10 A	Blue, Green, LED, Red	No Marking		Ceramic Actuator
