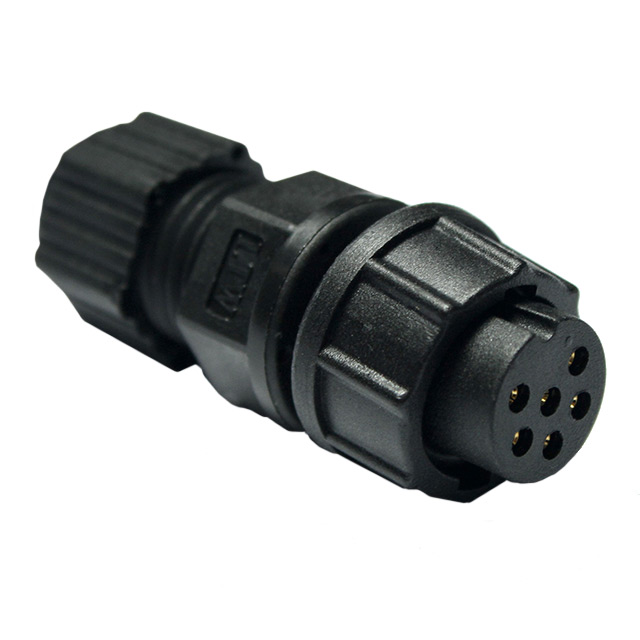

BD-06BFFA-LL7001

Active

Amphenol LTW

CONN PLUG FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BD-06BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Current Rating (Amps)	Features	Backshell Material, Plating	Contact Material	Shell Size - Insert	Insert Material	Connector Type	Color	Orientation	Number of Positions	Shell Material	Ingress Protection	Shielding	Mounting Type	Fastening Type
Amphenol LTW BD-06BFFA-SL7001	-40 °C	105 ░C	Gold	4.5 mm 6.5 mm	0.177 in 0.256 in	Plastic	5 A	Backshell Coupling Nut	Nylon Polyamide (PA)	Copper Alloy	B	Polyamide (PA) Nylon Glass Filled	Female Sockets Plug	Black	Keyed	6	Glass Filled Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof	Unshielded	Free Hanging (In-Line)
Amphenol LTW BD-06BFFA-LL6001	-40 °C	105 ░C	Gold			Plastic	5 A	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	Copper Alloy	B	Polyamide (PA) Nylon Glass Filled	Female Sockets Plug	Black	Keyed	6	Glass Filled Nylon Polyamide (PA)	IP66	Unshielded	Free Hanging (In-Line)	Bayonet Lock
Amphenol LTW BD-06BFFA-SL6001	-40 °C	105 ░C	Gold			Plastic	5 A	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	Copper Alloy	B	Polyamide (PA) Nylon Glass Filled	Female Sockets Plug	Black	Keyed	6	Glass Filled Nylon Polyamide (PA)	IP66	Unshielded	Free Hanging (In-Line)
Amphenol LTW BD-06BFFA-LL7001	-40 °C	105 ░C	Gold			Plastic	5 A	Backshell Coupling Nut	Nylon Polyamide (PA)	Copper Alloy	B	Polyamide (PA) Nylon Glass Filled	Female Sockets Plug	Black	Keyed	6	Glass Filled Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof	Unshielded	Free Hanging (In-Line)	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup
