1243/2C SL005

Active

ALPHA WIRE

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 2 PAIR, 22 AWG, 0.36 MM², 100 FT, 30.5 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComm, Control, Industrial Cable Catalog Product Change Notice EN

1243/2C SL005

Active

ALPHA WIRE

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 2 PAIR, 22 AWG, 0.36 MM², 100 FT, 30.5 M

Deep-Dive with AI

DocumentsComm, Control, Industrial Cable Catalog Product Change Notice EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 2.96
		200	$ 2.81
		300	$ 2.73
		500	$ 2.63
		700	$ 2.57
		1000	$ 2.50
		2500	$ 2.40
Newark	Spool of 100	1	$ 393.42
		10	$ 389.44

Description

General part information

1243/2C Series

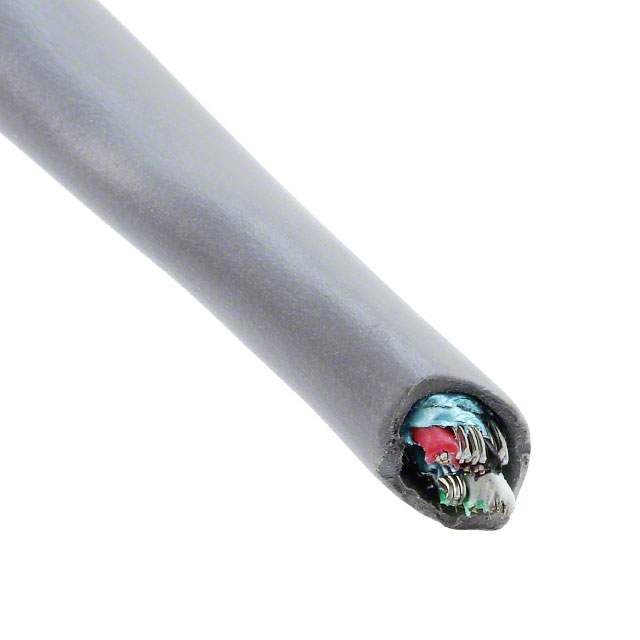

The 1243/2C SL005 is a 100ft 2-pair slate individually shielded Communication and Control Cable with stranded tinned copper conductors and polypropylene insulation. The cable has an aluminium shield for moderate EMI protection. It has aluminium/polyester foil shield with 25% minimum overlap, foil facing in-ward stranded tinned copper drain wire.

Specification	1243/2C SL005	1243/2C Series

Cable Type	Multi-Pair	Multi-Pair
Conductor Insulation	Polypropylene (PP)	Polypropylene (PP)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.22 mm	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm	0.762 mm
Jacket (Insulation) Thickness	0.03 in	0.03 in
Jacket Color	Slate	Slate
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	4	4
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

Part	Jacket Color	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Wire Gauge	Conductor Insulation	Conductor Material	Voltage	Usage	Shield Coverage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Features	Number of Conductors	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
ALPHA WIRE 1243/2C SL005	Slate	30.5 m	100 ft	-20 C	80 C	7	30 AWG	Aluminum	22 AWG	Polypropylene (PP)	Copper, Tinned	300 V	Communication, Control	100 %	Multi-Pair	6.22 mm	0.245 in	Poly-Vinyl Chloride (PVC)	Drain Wire	4	Foil	0.762 mm	0.03 in
ALPHA WIRE 1243/2C SL002	Slate	152.4 m	500 '	-20 C	80 C	7	30 AWG	Aluminum	22 AWG	Polypropylene (PP)	Copper, Tinned	300 V	Communication, Control	100 %	Multi-Pair	6.22 mm	0.245 in	Poly-Vinyl Chloride (PVC)	Drain Wire	4	Foil	0.762 mm	0.03 in
