RT8072GQW
Richtek USA Inc.
IC REG BUCK ADJ 5A 12WDFN
Deep-Dive with AI
Search across all available documentation for this part.
RT8072GQW
Richtek USA Inc.
IC REG BUCK ADJ 5A 12WDFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT8072GQW |
|---|---|
| Current - Output | 5 A |
| Frequency - Switching [Max] | 2 MHz |
| Frequency - Switching [Min] | 300 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

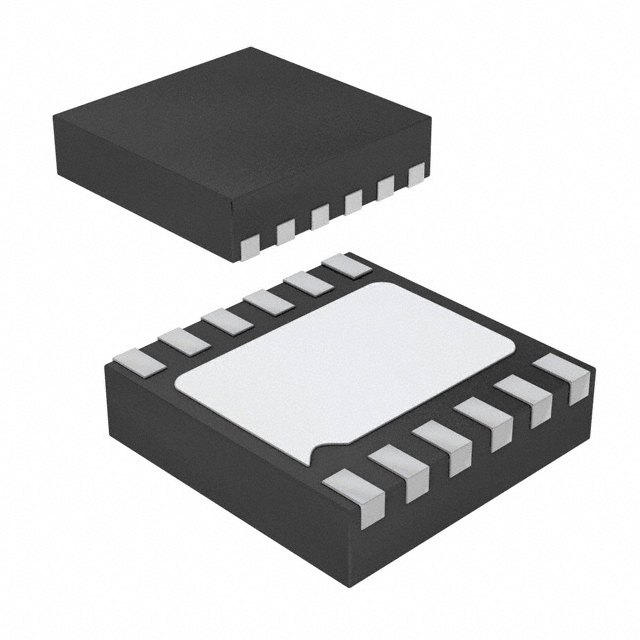

| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WDFN (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.9 V |
| Voltage - Output (Max) [Max] | 3.3 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.91 | |
| 10 | $ 1.89 | |||
| 25 | $ 1.62 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 2.91 | ||
| 10 | $ 1.89 | |||
| 25 | $ 1.62 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.08 | |||
| Tape & Reel (TR) | 1500 | $ 0.37 | ||
Description
General part information
RT8072 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 12-WFDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
