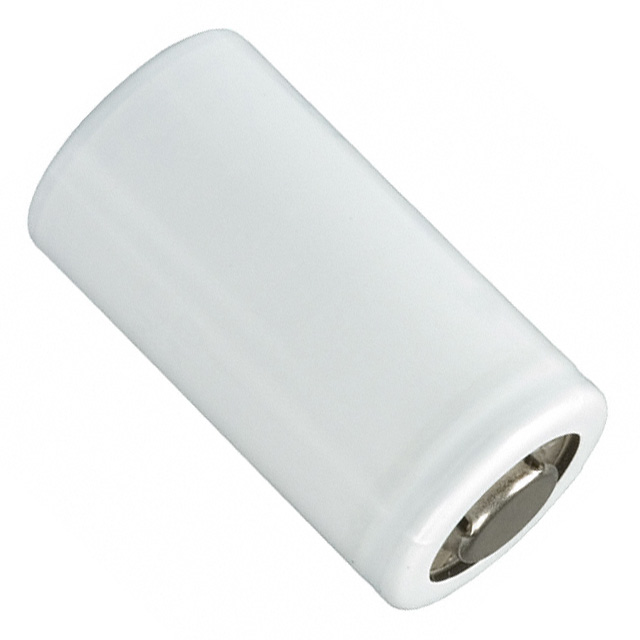

N-1300SCR
UnknownPanasonic Industrial Automation Sales
BATTERY NICAD 1.2V 1.3AH SC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N-1300SCR
UnknownPanasonic Industrial Automation Sales
BATTERY NICAD 1.2V 1.3AH SC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N-1300SCR |
|---|---|
| Battery Cell Size | SC |
| Battery Chemistry | Nickel Cadmium |
| Capacity | 1.3 Ah |
| Discharge Rate | 260 mA |
| Size / Dimension [diameter] | 22.3 mm |
| Size / Dimension [diameter] | 0.88 in |
| Size / Dimension [z] | 1.67 in |
| Size / Dimension [z] | 42.3 mm |
| Standard Charge Current | 130 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 1.2 V |
| Weight | 51.26 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.99 | |
| 10 | $ 4.13 | |||
| 50 | $ 3.62 | |||
| 100 | $ 3.42 | |||
| 250 | $ 3.17 | |||
Description
General part information
N-1300 Series
SC 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 1.3Ah
