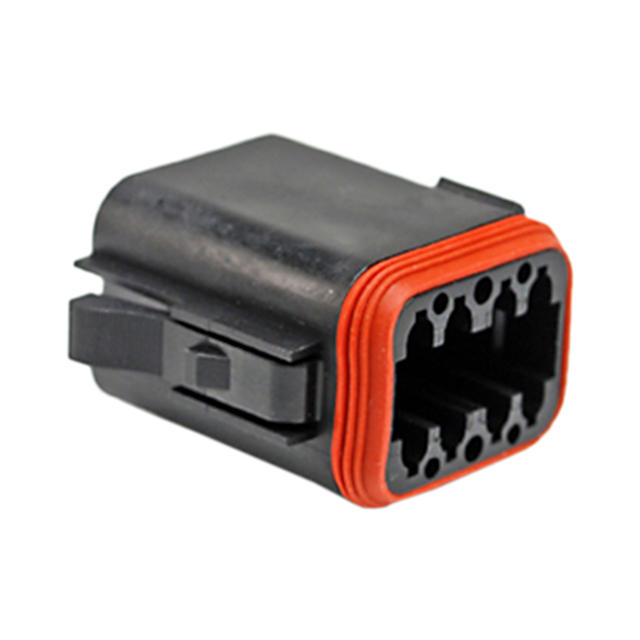

Technical Specifications
Parameters and characteristics for this part
| Specification | AT06-08SB |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Sealed |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
AT06-08SB Series
| Part | Insulation Material | Features | Connector Type | Mounting Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Note | Contact Type | Contact Termination | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Thermoplastic | Cap (Cover) Sealed Strain Relief | Plug | Free Hanging (In-Line) | 2 | -55 °C | 125 °C | Latch Lock | Contacts Not Included | Female Socket | Crimp | Black | 8 |
Amphenol Sine Systems Corp | Polyamide (PA66) Nylon 6/6 Glass Filled | IP67 | Plug | Free Hanging (In-Line) | 2 | -55 °C | 125 °C | Latch Lock | Contacts Not Included | Female Socket | Crimp | Black | 8 |
Amphenol Sine Systems Corp | Thermoplastic | Plug | Free Hanging (In-Line) | 2 | -55 °C | 125 °C | Latch Lock | Contacts Not Included | Female Socket | Crimp | Black | 8 | |
Amphenol Sine Systems Corp | Thermoplastic | Cap (Cover) Sealed Strain Relief | Plug | Free Hanging (In-Line) | 2 | -55 °C | 125 °C | Latch Lock | Contacts Not Included | Female Socket | Crimp | Black | 8 |
Amphenol Sine Systems Corp | Thermoplastic | Cap (Cover) | Plug | Free Hanging (In-Line) | 2 | -55 °C | 125 °C | Latch Lock | Contacts Not Included | Female Socket | Crimp | Black | 8 |
Amphenol Sine Systems Corp | Thermoplastic | Sealed | Plug | Free Hanging (In-Line) | 2 | -55 °C | 125 °C | Latch Lock | Contacts Not Included | Female Socket | Crimp | Black | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.31 | |
| 10 | $ 3.00 | |||
| 25 | $ 2.84 | |||
| 50 | $ 2.78 | |||
| 100 | $ 2.65 | |||
| 250 | $ 2.32 | |||
| 480 | $ 2.07 | |||
| 960 | $ 1.92 | |||
| 1440 | $ 1.92 | |||
| 1920 | $ 1.85 | |||
| 2880 | $ 1.79 | |||
Description
General part information
AT06-08SB Series
8 Rectangular Connectors - Housings Plug Black
