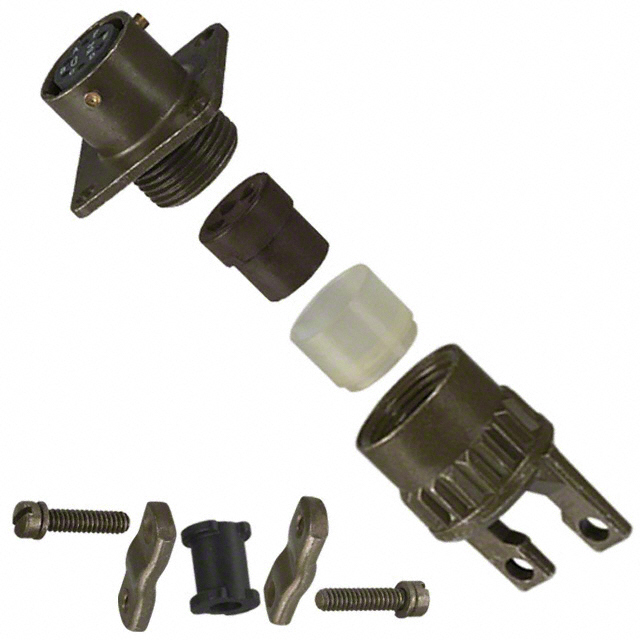

MS3110F-10-6S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3110F-10-6S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3110F-10-6S | MS3110F10 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.84 | |
| 10 | $ 38.75 | |||
| 25 | $ 35.15 | |||
| 50 | $ 32.76 | |||
| 100 | $ 28.99 | |||
| 250 | $ 27.00 | |||
MS3110F10 Series
CONN RCPT FMALE 6P GOLD SLDR CUP
| Part | Ingress Protection | Fastening Type | Features | Connector Type | Backshell Material, Plating | Primary Material | Shell Material | Shell Size - Insert | Mounting Feature | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | Applications | Color | Number of Positions | Orientation | Shielding | Grade | Contact Material | Shell Finish | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3110F-10-6S | Environment Resistant | Bayonet Lock | Backshell, Cable Clamp | Receptacle, Female Sockets | Aluminum, Olive Drab Chromate over Cadmium | Metal | Aluminum | 10-6 | Flange | Gold | -55 °C | 125 °C | MIL-DTL-26482 Series I | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | 6 | N | Unshielded | Military | Copper Alloy | Olive Drab Chromate over Cadmium | Neoprene |
Amphenol Industrial Operations MS3110F10-98P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3110F-10-6P | Environment Resistant | Bayonet Lock | Backshell, Cable Clamp | Male Pins, Receptacle | Aluminum, Olive Drab Chromate over Cadmium | Metal | Aluminum | 10-6 | Flange | Gold | -55 °C | 125 °C | MIL-DTL-26482 Series I | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | 6 | N | Unshielded | Military | Copper Alloy | Olive Drab Chromate over Cadmium | Neoprene |
Amphenol Industrial Operations MS3110F10-98S |
Description
General part information
MS3110F10 Series
6 Position Circular Connector Receptacle, Female Sockets Solder Cup
