EPS030100-P5RP

Obsolete

CUI Inc.

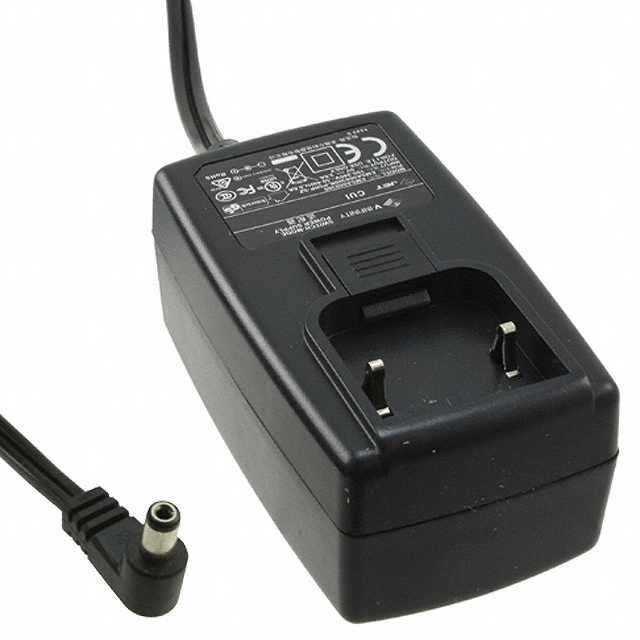

AC/DC WALL MOUNT ADAPTER 3V 3W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 3V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC WALL MOUNT ADAPTER 3V 3W

Part	Polarization	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Applications	Power (Watts)	Region Utilized	No Load Power Consumption	Approval Agency	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Output Connector [diameter]	Output Connector [x]	Output Connector	Cord Length	Cord Length	Voltage - Output	Form	Output Connector [custom]
CUI Inc. EPS030100-P5RP	Positive Center	1 A	100 VAC	132 VAC	NEMA 1-15P	40 °C	0 °C	Fixed Blade	ITE (Commercial)	3 W	North America	500 mW	cULus	Level IV	1.06 in	1.65 "	26.8 mm	2.45 in	42 mm	62.3 mm	2.1 mm, 5.5 mm	12 mm	Barrel Plug R/A	1.83 m	72 in	3 V	Wall Mount (Class II)
CUI Inc. EPS030100-P6RP	Positive Center	1 A	100 VAC	132 VAC	NEMA 1-15P	40 °C	0 °C	Fixed Blade	ITE (Commercial)	3 W	North America	500 mW	cULus	Level IV	1.06 in	1.65 "	26.8 mm	2.45 in	42 mm	62.3 mm	2.5 mm, 5.5 mm		Barrel Plug R/A	1.83 m	72 in	3 V	Wall Mount (Class II)	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3V 3 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
