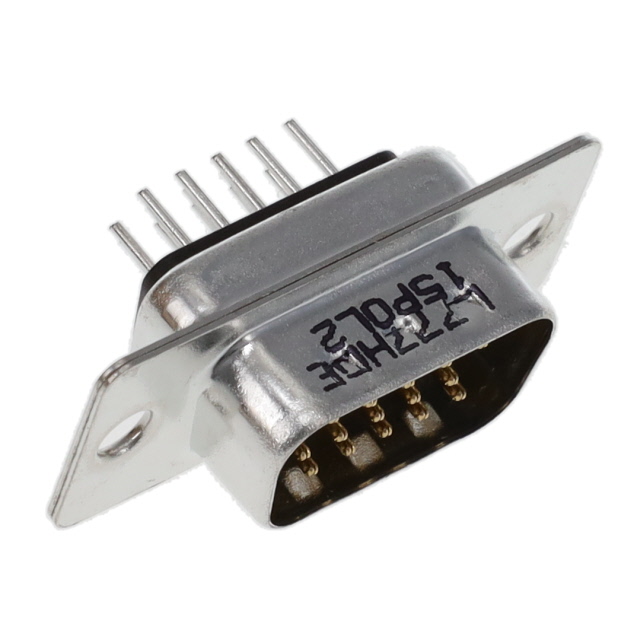

L777HDE15POL2

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 15P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L777HDE15POL2

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 15P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L777HDE15POL2

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VDC

L777HDE15 Series

Part	Flange Feature	Features	Number of Positions	Termination	Contact Finish	Contact Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Contact Material	Connector Type	Backset Spacing	Backset Spacing	Mounting Type	Number of Rows	Current Rating (Amps)	Contact Form	Connector Style	Dielectric Material	Color
Amphenol ICC (Commercial Products) L777HDE15PD1CH3R	Board Side (M3)	Board Lock Grounding Indents	15	Solder	Gold	Signal	250 VDC	-55 °C	125 °C	DE E	1	High Density	16 µin	0.41 µm	UL94 V-0	Brass	Male Pins Plug	8.89 mm	0.35 in	Through Hole Right Angle	3	3 A	Stamped	D-Sub High Density	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L777HDE15PVFM	Female Screwlock (M3) Mating Side	Grounding Indents	15		Gold	Signal	250 VDC	-55 °C	155 °C	DE E	1	High Density	16 µin	0.41 µm	UL94 V-0	Brass	Male Pins Plug			Free Hanging (In-Line)	3	3 A	Stamped	D-Sub High Density	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L777HDE15PVF	Female Screwlock (4-40) Mating Side	Grounding Indents	15		Gold	Signal	250 VDC	-55 °C	155 °C	DE E	1	High Density	16 µin	0.41 µm	UL94 V-0	Brass	Male Pins Plug			Free Hanging (In-Line)	3	3 A	Stamped	D-Sub High Density	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L777HDE15PD1CH4F	Female Screwlock (4-40) Mating Side	Board Lock Grounding Indents Grounding Tabs	15	Solder	Gold	Signal	250 VDC	-55 °C	105 ░C	DE E	1	High Density	16 µin	0.41 µm	UL94 V-0	Brass	Male Pins Plug	8.89 mm	0.35 in	Through Hole Right Angle	3	3 A	Stamped	D-Sub High Density	Thermoplastic Glass Filled	Black
Amphenol ICC (Commercial Products) L777HDE15POL2	Housing/Shell (Unthreaded)	Grounding Indents	15	Solder	Gold	Signal	250 VDC	-55 °C	105 ░C	DE E	1	High Density	16 µin	0.41 µm	UL94 V-0	Brass	Male Pins Plug			Through Hole	3	3 A	Stamped	D-Sub High Density	Thermoplastic Glass Filled	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.15
		10	$ 1.87
		25	$ 1.79
		50	$ 1.75
		100	$ 1.67
		250	$ 1.51
		450	$ 1.39
		950	$ 1.20
		2400	$ 1.12

Description

General part information

L777HDE15 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
