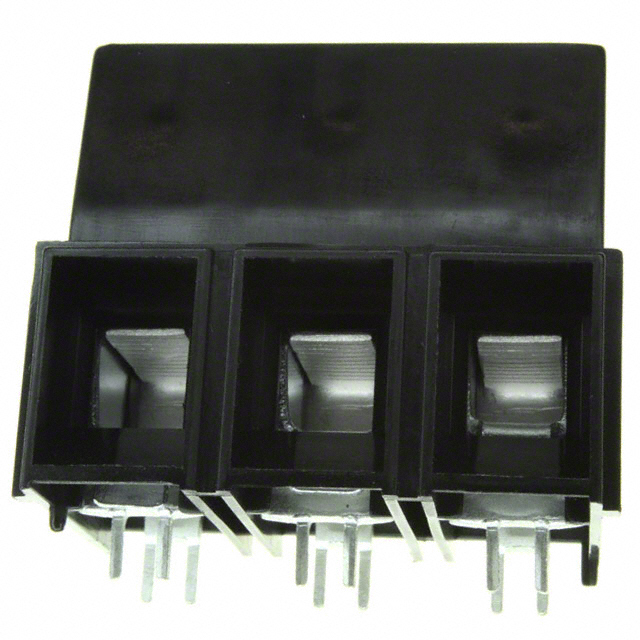

ELMP03150
ObsoleteAMPHENOL PCD
TERM BLK 3P SIDE ENTRY 15MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELMP03150
ObsoleteAMPHENOL PCD
TERM BLK 3P SIDE ENTRY 15MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELMP03150 |
|---|---|
| Clamp Material - Plating | Steel, Zinc Plated |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 75 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.591 in |
| Pitch [x] | 15 mm |
| Positions Per Level | 3 |
| Screw Material - Plating | Steel, Zinc Plated |
| Torque - Screw | 20 Lb-In |
| Torque - Screw | 2.26 Nm |
| Voltage | 600 V |
| Wire Gauge [Max] | 16 AWG |
| Wire Gauge [Min] | 4 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ELMP031 Series
3 Position Wire to Board Terminal Block Horizontal with Board 0.591" (15.00mm) Through Hole
