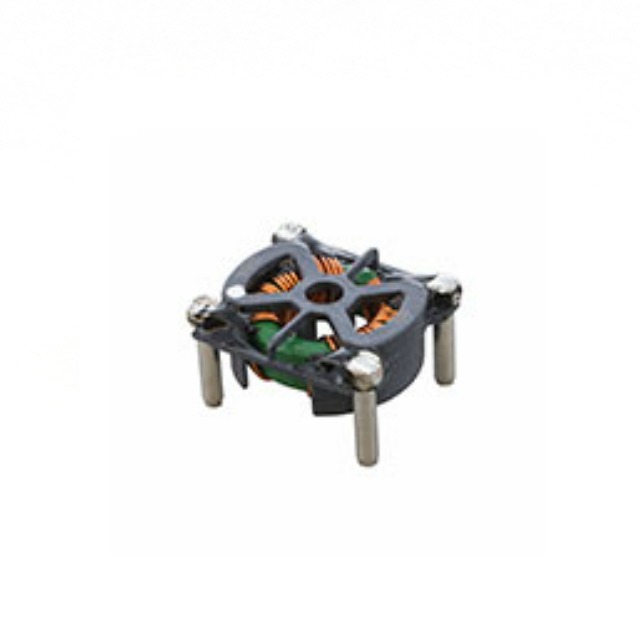

47721-490

Active

Vicor Corporation

CMC 49UH 22A 2LN 140OHM CHAS MNT

Search across all available documentation for this part.

Active

Vicor Corporation

CMC 49UH 22A 2LN 140OHM CHAS MNT

Technical Specifications

Parameters and characteristics for this part

CMC 49UH 22A 2LN 140OHM CHAS MNT

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height (Max) [Max]	Height (Max) [Max]	Impedance @ Frequency	Package / Case	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Mounting Type	Inductance @ Frequency	Number of Lines
Vicor Corporation 47721-490	0.64 in	16.26 mm	0.715 in	18.16 mm	0.261 in	6.63 mm	140 Ohms	Nonstandard	22 A	3.5 mOhm	Chassis Mount	49 µH	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

49 µH @ 10 kHz 2 Line Common Mode Choke Chassis Mount 140 Ohms @ 1 MHz 22A DCR 3.5mOhm
