17982-7PG-300

Active

Conxall/Switchcraft

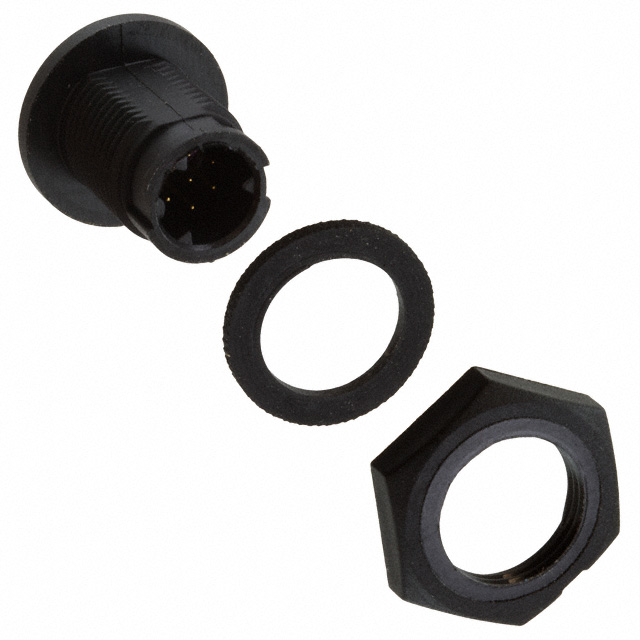

CONN RCPT MALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	17982-7PG-300	17982-7P Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3.5 A	3.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	7	7
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	B	B
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 VAC	600 VAC

CONN RCPT MALE 7P GOLD SLDR CUP

Part	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Ingress Protection	Material Flammability Rating	Mounting Feature	Color	Applications	Current Rating (Amps)	Shielding	Fastening Type	Orientation	Connector Type	Number of Positions	Contact Material	Voltage Rating
Conxall/Switchcraft 17982-7PG-300	Plastic	85 °C	-40 °C	Gold	IP67 - Dust Tight, Waterproof	UL94 HB	Bulkhead - Front Side Nut	Black	Data, Industrial, Instrumentation, Medical	3.5 A	Unshielded	Bayonet Lock	B	Male Pins, Receptacle	7	Copper Alloy	600 VAC
Conxall/Switchcraft 17982-7PG-3ES	Plastic	85 °C	-40 °C	Gold	IP67 - Dust Tight, Waterproof	UL94 HB	Bulkhead - Front Side Nut	Black	Data, Industrial, Instrumentation, Medical	3.5 A	Unshielded	Bayonet Lock	B	Male Pins, Receptacle	7	Copper Alloy	600 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
