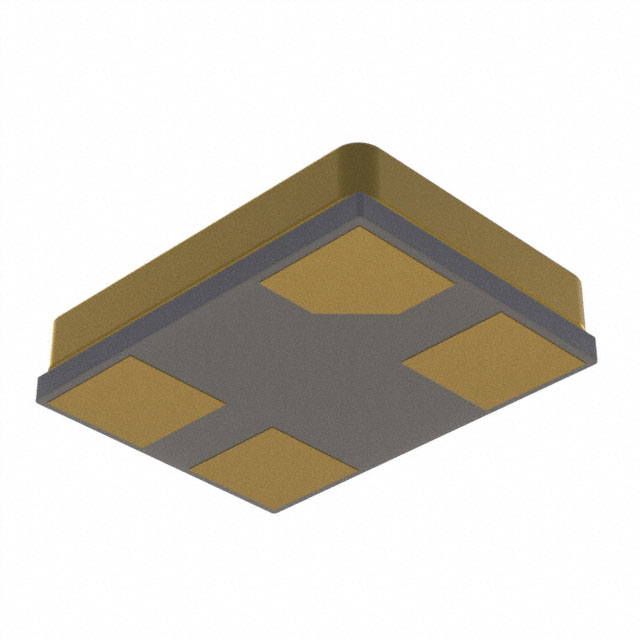

XRCMD40M000FXQ61R0

Obsolete

Murata Electronics

CRYSTAL 40.0000MHZ 5.8PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Crystal Units/Oscillators Catalog

XRCMD40M000FXQ61R0

Obsolete

Murata Electronics

CRYSTAL 40.0000MHZ 5.8PF SMD

Deep-Dive with AI

DocumentsDatasheet Crystal Units/Oscillators Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XRCMD Series

40 MHz ±20ppm Crystal 5.8pF 60 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Crystal Units/Oscillators Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XRCMD40M000FXQ61R0	XRCMD Series

	-	-
ESR (Equivalent Series Resistance)	60 Ohms	40 - 100 Ohms
Frequency	40 MHz	32 - 48 MHz
Frequency Stability	20 ppm	10 - 25 ppm
Frequency Tolerance	20 ppm	10 - 30 ppm
Height - Seated (Max) [Max]	0.33 mm	0.33 mm
Height - Seated (Max) [Max] [z]	0.013 "	0.013 "
Load Capacitance	5.8 pF	5.8 - 10 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-30 ░C	-40 - -20 ░C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.047 in	0.047 in
Size / Dimension [y]	1.2 mm	1.2 mm
Type	MHz Crystal	MHz Crystal

XRCMD Series

CRYSTAL 40.0000MHZ 5.8PF SMD

Part	Type	Load Capacitance	Frequency	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Mode	Frequency Tolerance	Frequency Stability	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Murata Electronics XRCMD40M000FXQ61R0	MHz Crystal	5.8 pF	40 MHz	60 Ohms	-30 ░C	85 °C	Fundamental	20 ppm	20 ppm	Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
Murata Electronics XRCMD40M000FXQ57R0	MHz Crystal	10 pF	40 MHz	60 Ohms	-30 ░C	85 °C	Fundamental	20 ppm	20 ppm	Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
Murata Electronics XRCMD32M000FXP53R0	MHz Crystal	6 pF	32 MHz	80 Ohm	-40 °C	85 °C	Fundamental	30 ppm	20 ppm	Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
Murata Electronics XRCMD32M000FXQ52R0	MHz Crystal	6 pF	32 MHz	80 Ohm	-30 ░C	85 °C	Fundamental	25 ppm	25 ppm	Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
Murata Electronics XRCMD32M000FXP50R0	MHz Crystal	6 pF	32 MHz	100 Ohms	-30 ░C	85 °C	Fundamental	30 ppm		Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
Murata Electronics XRCMD32M000FZQ52R0	MHz Crystal	6 pF	32 MHz	60 Ohms	-40 °C	85 °C	Fundamental	30 ppm		Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
Murata Electronics XRCMD32M000FBP50R0
Murata Electronics XRCMD32M000F1P00R0	MHz Crystal	6 pF	32 MHz	80 Ohm	-30 ░C	85 °C	Fundamental	10 ppm	20 ppm	Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
Murata Electronics XRCMD48M000FXQ58R0	MHz Crystal	7 pF	48 MHz	40 Ohms	-30 ░C	85 °C	Fundamental	20 ppm		Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
Murata Electronics XRCMD37M400F1Q01R0	MHz Crystal	8 pF	37.4 MHz	60 Ohms	-20 C	70 °C	Fundamental	10 ppm	10 ppm	Surface Mount	4-SMD, No Lead	0.013 "	0.33 mm	0.047 in	1.2 mm	1.6 mm	0.063 in
