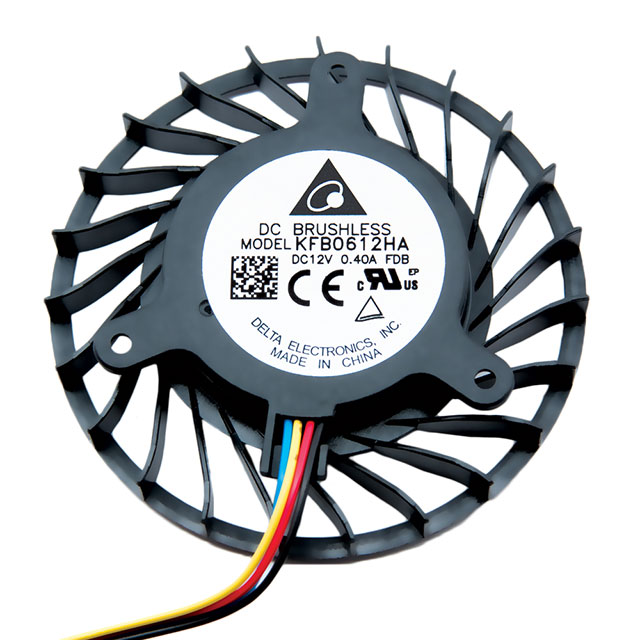

KFB0612HAFDB

Active

Delta Electronics

FAN IMP MTR FRAMEL 60X12MM 12VDC

Search across all available documentation for this part.

Active

Delta Electronics

FAN IMP MTR FRAMEL 60X12MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	KFB0612HAFDB

Air Flow	0.258 m³/min
Air Flow	9.2 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Frameless, Motorized Impellers
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	36.7 dB(A)
Power (Watts)	1.8 W
RPM	3300 RPM
Size / Dimension [diameter]	60 mm
Static Pressure	0.634 in H2O
Static Pressure	157.9 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.6 VDC
Voltage Range [Min]	7 V
Weight	0.061 lb
Weight	27.67 g
Width [y]	12 mm

Part	Static Pressure	Static Pressure	Size / Dimension [diameter]	Approval Agency	Termination	Power (Watts)	Voltage - Rated	Width [y]	Ingress Protection	Fan Type	Material - Frame	Air Flow	Air Flow	Weight	Weight	Material - Blade	Features	Bearing Type	RPM	Noise	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]
Delta Electronics KFB0612HAFDB	0.634 in H2O	157.9 Pa	60 mm	CE cURus TUV	4 Wire Leads	1.8 W	12 VDC	12 mm	IP55 - Dust Protected Water Resistant	Frameless Motorized Impellers	Plastic	0.258 m³/min	9.2 CFM	0.061 lb	27.67 g	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	3300 RPM	36.7 dB(A)	150 mA	50000 Hrs	7 V	13.6 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers, Frameless 12VDC Round - 60mm Dia Ball 9.2 CFM (0.258m³/min) 4 Wire Leads
