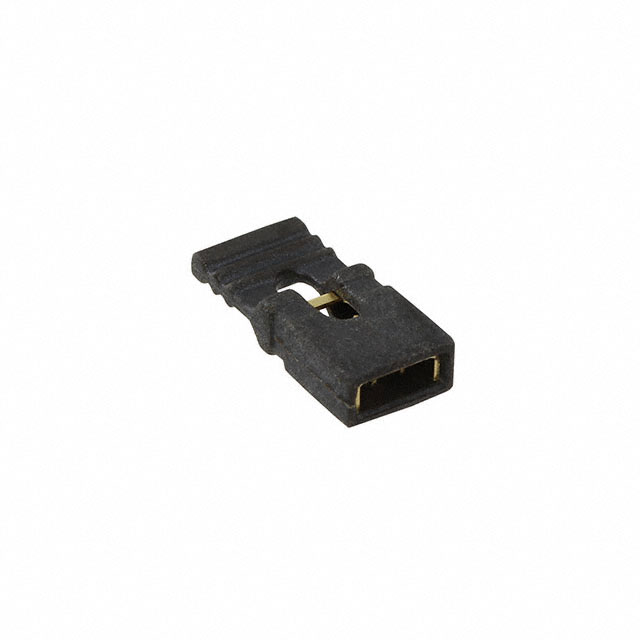

AMC02SXNN-S328

Active

Sullins Connector Solutions

HI-TEMP CONN SHUNT BROWN .100

Search across all available documentation for this part.

Active

Sullins Connector Solutions

HI-TEMP CONN SHUNT BROWN .100

Technical Specifications

Parameters and characteristics for this part

Specification	AMC02SXNN-S328

Color	Brown
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	10.92 mm
Height [z]	0.43 "
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Closed Top, Grip

Part	Type	Height [z]	Height [z]	Gender	Current Rating (Amps)	Pitch [x]	Pitch [x]	Material Flammability Rating	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Sullins Connector Solutions AMC02SXNN-S328	Closed Top Grip	10.92 mm	0.43 "	Female Sockets	3 A	2.54 mm	0.1 in	UL94 V-0	Brown	0.76 Ám	30 Áin	Gold	1 x 2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Brown Closed Top, Grip 0.100" (2.54mm) Gold

Technical documentation and resources

No documents available
