MXM8-PW57-0000

Obsolete

Lumileds

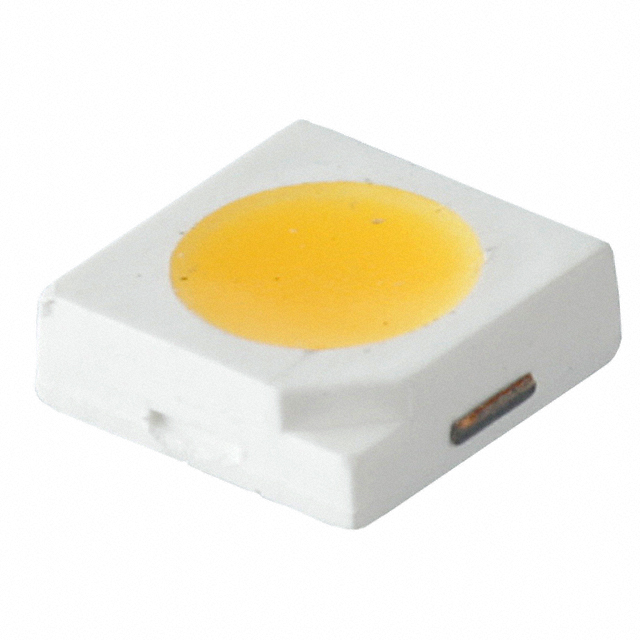

LED LUXEON COOL WHITE 5700K 2SMD

Search across all available documentation for this part.

Obsolete

Lumileds

LED LUXEON COOL WHITE 5700K 2SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MXM8-PW57-0000	MXM8-PW Series

CCT (K)	5700 K	5700 - 6500 K
Color	Cool, White	Cool, White
CRI (Color Rendering Index)	80	80
Current - Max [Max]	150 mA	150 mA
Current - Test	100 mA	100 mA
Flux @ 25°C, Current - Test	36 lm	36 lm
Height - Seated (Max)	1.35 mm	1.35 mm
Height - Seated (Max) [Max] [z]	0.053 in	0.053 in
Lumens/Watt @ Current - Test	116 lm/W	116 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [x]	0.138 in	0.138 in
Size / Dimension [y]	3.5 mm	3.5 mm
Size / Dimension [y]	0.138 in	0.138 in
Supplier Device Package	3535	3535
Thermal Resistance of Package [custom]	20 °C/W	20 °C/W
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	3.1 V	3.1 V

LED LUXEON COOL WHITE 6500K 3535

Part	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Current - Max [Max]	Thermal Resistance of Package [custom]	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Flux @ 25°C, Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Mounting Type	CRI (Color Rendering Index)	Supplier Device Package	Color
Lumileds MXM8-PW65-0000	1.35 mm	0.053 in	3535 Metric	1414	150 mA	20 °C/W	116 lm/W	3.5 mm	3.5 mm	0.138 in	0.138 in	6500 K	36 lm	115 °	3.1 V	100 mA	Surface Mount	80	3535	Cool, White
Lumileds MXM8-PW57-0000	1.35 mm	0.053 in	3535 Metric	1414	150 mA	20 °C/W	116 lm/W	3.5 mm	3.5 mm	0.138 in	0.138 in	5700 K	36 lm	115 °	3.1 V	100 mA	Surface Mount	80	3535	Cool, White
