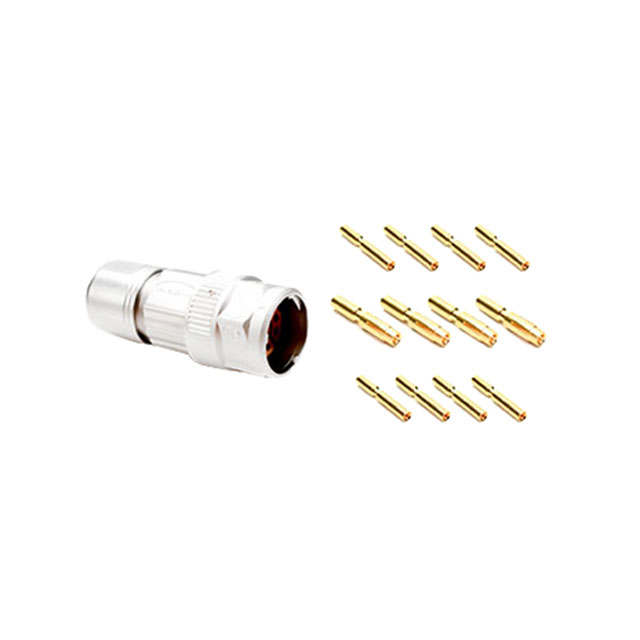

MB5CKN0900-S2-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 9POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB5CKN0900-S2-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 9POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB5CKN0900-S2-KIT

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	10 A, 30 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	4
Number of Positions [custom]	9
Number of Positions [custom]	4
Number of Positions [custom]	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 VAC

MB5CKN0900 Series

Part	Note	Orientation	Contact Shape	Insert Material	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Shell Size - Insert	Housing Color	Fastening Type	Features	Ingress Protection	Contact Size [custom]	Contact Size [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Shielding	Shell Finish	Shell Material	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Primary Material	Voltage Rating	Color	Termination	Current Rating (Amps)
Amphenol Sine Systems Corp MB5CKN0900-S2	Contacts Not Included	Keyed	Circular	Polyamide (PA66) Nylon 6/6	For Female Sockets	-20 C	130 °C	Crimp	M23-9	Silver	Push-Twist	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	2 mm	1 mm	4	9	4	1	Plug Housing	Shielded	Nickel	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line)
Amphenol Sine Systems Corp MB5CKN0900-S3	Contacts Not Included	Keyed	Circular	Polyamide (PA66) Nylon 6/6	For Female Sockets	-20 C	130 °C	Crimp	M23-9	Silver	Push-Twist	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	2 mm	1 mm	4	9	4	1	Plug Housing	Shielded	Nickel	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line)
Amphenol Sine Systems Corp MB5CKN0900-S3-KIT		Keyed				-20 C	130 °C		M23-9		Push-Twist	Backshell Coupling Nut	IP67 - Dust Tight Waterproof			4	9	4	1	Female Sockets Plug	Shielded	Nickel	Zinc Die Cast		Free Hanging (In-Line)	Gold	Metal	250 VAC	Silver	Crimp	10 A 30 A
Amphenol Sine Systems Corp MB5CKN0900-S2-KIT		Keyed				-20 C	130 °C		M23-9		Push-Twist	Backshell Coupling Nut	IP67 - Dust Tight Waterproof			4	9	4	1	Female Sockets Plug	Shielded	Nickel	Zinc Die Cast		Free Hanging (In-Line)	Gold	Metal	250 VAC	Silver	Crimp	10 A 30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.30
		10	$ 43.41
		30	$ 41.74
		50	$ 40.35
		100	$ 38.12
		250	$ 37.01

Description

General part information

MB5CKN0900 Series

9 (4 + 4 Power + PE) Position Circular Connector Plug, Female Sockets Crimp
