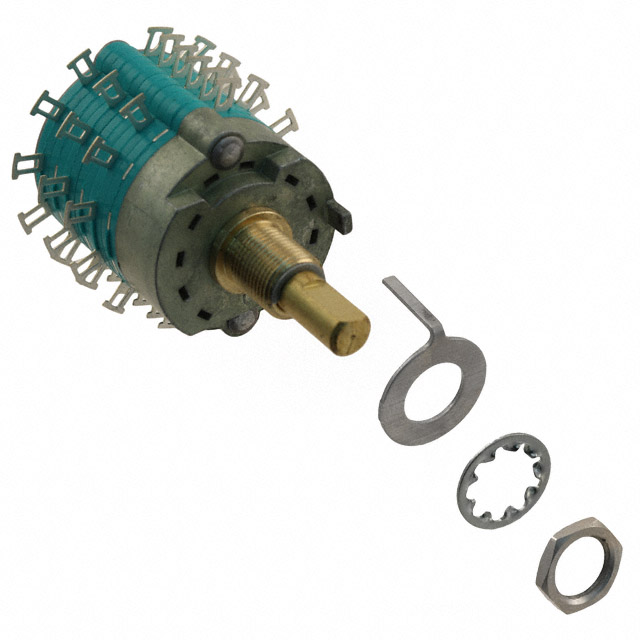

C4D0606N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 300MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C4D0606N-A

Actuator Length [x]	0.5 in
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	300 mA, 500 mA
Depth Behind Panel [z]	34.54 mm
Index Stops	Adjustable
Number of Decks	3
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Circuit per Deck [custom]	Voltage Rating - AC	Depth Behind Panel [z]	Contact Timing	Contact Finish	Actuator Type [diameter]	Actuator Type	Number of Positions [Max]	Number of Positions [Min]	Current Rating (Amps)	Voltage Rating - DC	Number of Decks	Angle of Throw	Panel Cutout Dimensions [diameter]	Contact Material	Termination Style	Number of Poles per Deck	Actuator Length [x]	Index Stops
ELECTROSWITCH C4D0606N-A	DP6T	125 V	34.54 mm	Non-Shorting	Silver	6.35 mm	Flatted	6	2	300 mA 500 mA	28 V	3	30 °	9.78 mm	Brass	Solder Lug	2	0.5 in	Adjustable
