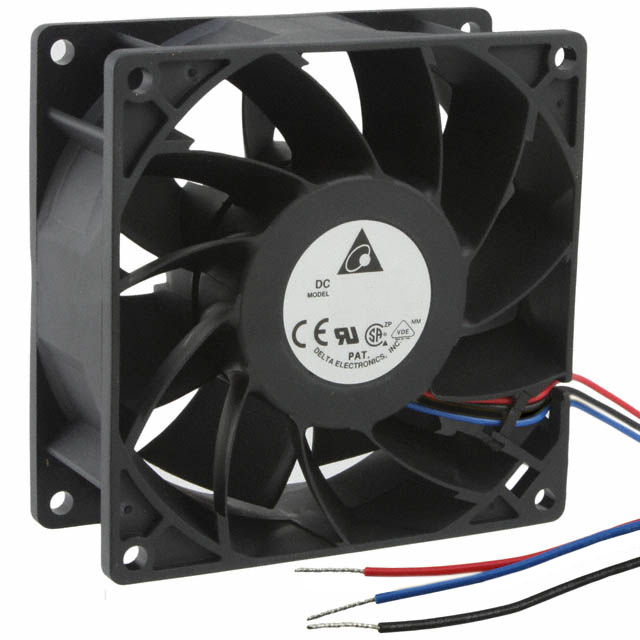

FFB0948SHE-F00

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans VDE Cert +2

FFB0948SHE-F00

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB0948SHE-F00

Air Flow	100.3 CFM
Air Flow	2.81 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	52.5 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	9.6 W
RPM	4400 RPM
Static Pressure	142.5 Pa
Static Pressure	0.572 in H2O
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	53 VDC
Voltage Range [Min]	28 V
Weight	198 g
Weight	0.437 lb
Width [y]	38 mm

FFB0948 Series

Part	Fan Type	Ingress Protection	Voltage - Rated [custom]	Width [y]	Material - Blade	Approval Agency	Noise	Bearing Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Lifetime @ Temp.	Current Rating (Amps)	Static Pressure	Static Pressure	Weight	Weight	Power (Watts)	RPM	Material - Frame	Termination	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Features
Delta Electronics FFB0948SHE-T500	Tubeaxial	IP55 - Dust Protected Water Resistant	48 VDC	38 mm	Plastic	CE CSA UL VDE	52.5 dB(A)	Ball	-10 °C	-10 °C	60 °C	60 °C	70000 Hrs	0.2 A	142.5 Pa	0.572 in H2O	198 g	0.437 lb	9.6 W	4400 RPM	Plastic	2 Wire Leads	28 V	56 VDC	100.3 CFM	2.81 m³/min
Delta Electronics FFB0948SHE	Tubeaxial		48 VDC	38 mm	Plastic	CE CSA UL VDE	52.5 dB(A)	Ball	-10 °C	-10 °C	60 °C	60 °C	70000 Hrs	0.2 A	142.5 Pa	0.572 in H2O	198 g	0.437 lb	9.6 W	4400 RPM	Plastic	2 Wire Leads	28 V	53 VDC	100.3 CFM	2.81 m³/min
Delta Electronics FFB0948VH	Tubeaxial		48 VDC	25.4 mm	Plastic	CE CSA UL VDE	48.2 dB(A)	Ball	-10 °C	-10 °C	60 °C	60 °C	70000 Hrs	0.17 A	79.5 Pa	0.319 in H2O	129.73 g	0.286 lb	8.16 W	3700 RPM	Plastic	2 Wire Leads	28 V	53 VDC	82 CFM	2.3 m³/min
Delta Electronics FFB0948SHE-TP28	Tubeaxial		48 VDC	38 mm	Plastic	CE CSA UL VDE	52.5 dB(A)	Ball	-10 °C	-10 °C	60 °C	60 °C	70000 Hrs	0.2 A	142.5 Pa	0.572 in H2O	198 g	0.437 lb	9.6 W	4400 RPM	Plastic	4 Wire Leads	32 VDC	56 VDC	100.3 CFM	2.81 m³/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics FFB0948VH-F00	Tubeaxial		48 VDC	25.4 mm	Plastic	CE CSA UL VDE	48.2 dB(A)	Ball	-10 °C	-10 °C	60 °C	60 °C	70000 Hrs	0.17 A	79.5 Pa	0.319 in H2O	129.73 g	0.286 lb	8.16 W	3700 RPM	Plastic	3 Wire Leads	28 V	53 VDC	82 CFM	2.3 m³/min	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB0948SHE-F00	Tubeaxial		48 VDC	38 mm	Plastic	CE CSA UL VDE	52.5 dB(A)	Ball	-10 °C	-10 °C	60 °C	60 °C	70000 Hrs	0.2 A	142.5 Pa	0.572 in H2O	198 g	0.437 lb	9.6 W	4400 RPM	Plastic	3 Wire Leads	28 V	53 VDC	100.3 CFM	2.81 m³/min	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FFB0948 Series

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 100.3 CFM (2.81m³/min) 3 Wire Leads
