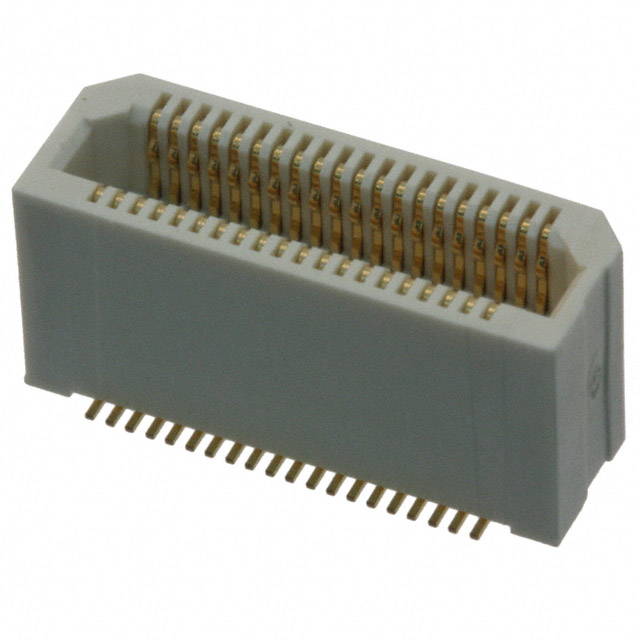

AXK5S40337YG

Active

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK5S40337YG

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.238 in
Height Above Board	6.05 mm
Mated Stacking Heights	9 mm, 7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mounting Type	Connector Type	Number of Positions	Features	Height Above Board	Height Above Board	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights
Panasonic Electric Works AXK5S40337YG	Surface Mount	Socket Center Strip Contacts	40	Board Guide	0.238 in	6.05 mm	Gold	2	0.5 mm	0.02 in	7 mm 8 mm 9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 2.45

General part information

40 Position Connector Socket, Center Strip Contacts Surface Mount Gold
