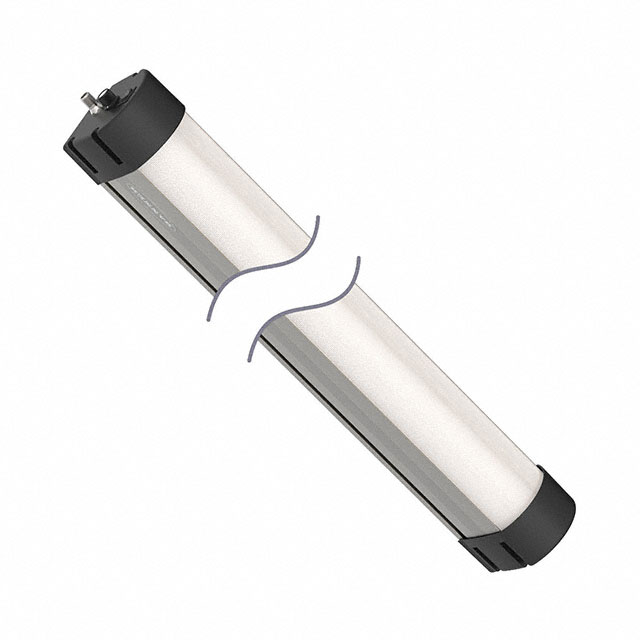

WLB92X1100PBQ

Active

BANNER ENGINEERING

WORK LIGHT DIMMABLE 1100MM

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORK LIGHT DIMMABLE 1100MM

Technical Specifications

Parameters and characteristics for this part

WORK LIGHT DIMMABLE 1100MM

Part	Length [x]	Length [x]	Profile (W x H) [y]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [x]	Voltage - Supply	Rated Life	Lens Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Luminous Flux	Ingress Protection	Approval Agency	Features	Illumination Color	Termination Style
BANNER ENGINEERING WLB92X1100PBQ	43.31 "	1.1 m	4.09 in	104 mm	97 mm	3.82 in	24 VDC	50000 Hours	Diffused, Tubular	-40 °C	70 °C	Aluminum (Al)	7150 lm	IP40	CE, cULus	Dimmable, On/Off Switch	Cool, White	Connector (M12)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 634.00
Newark	Each	1	$ 645.00

General part information

WORK LIGHT DIMMABLE 1100MM

Technical documentation and resources
