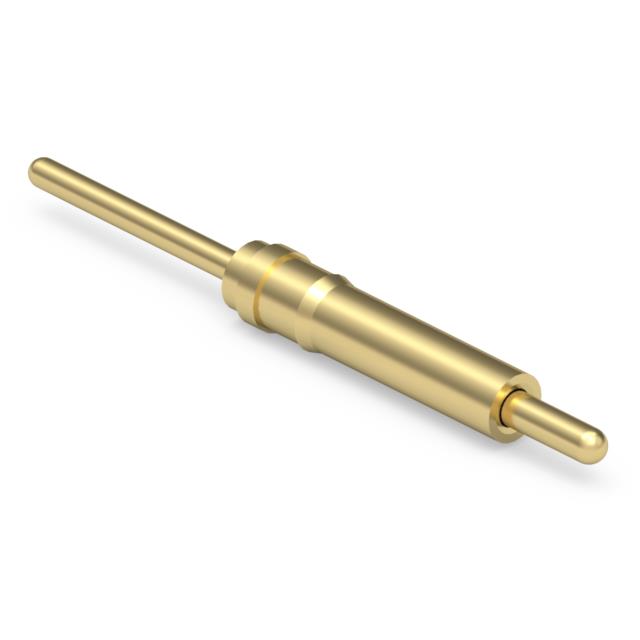

0985-1-15-20-71-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0985-1-15-20-71-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0985-1-15-20-71-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 5.2 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 0.247 in |
| Maximum Working Height [Max] | 6.27 mm |
| Minimum Working Height [Min] | 4.87 mm |
| Minimum Working Height [Min] | 0.192 in |
| Mounting Type | Through Hole |
| Operating Force - Mid Compression | 60 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 0.043 in |
| Pad Layout Dimension [diameter] | 1.09 mm |
| Plunger Size [diameter] | 0.48 mm |
| Plunger Size [diameter] | 0.019 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.15 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.79 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.53 | |||
| 2500 | $ 0.48 | |||
Description
General part information
0985-1 Series
Contact Spring Through Hole
