GSP2.8111.13

Active

SCHURTER Inc.

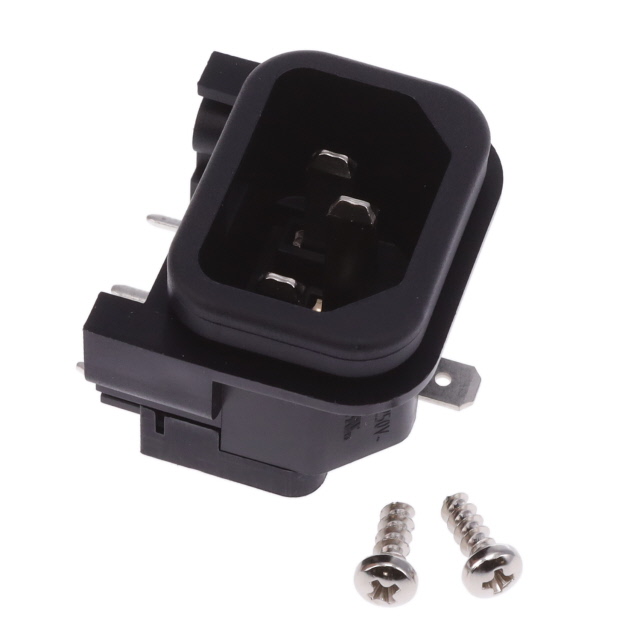

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	GSP2.8111.13

Accomodates a Fuse	False
Approval Agency	ENEC, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder, Quick Connect - 0.189" (4.8mm)
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Panel Thickness [custom]	Panel Thickness [custom]	Material Flammability Rating	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Connector Style	Ingress Protection	Termination	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type	Filter Type	Accomodates a Fuse	Approval Agency	Mounting Type
SCHURTER Inc. GSP2.8111.13	0.059 in	1.5 mm	UL94 V-0	10 A	250 VAC	IEC 320-C14	IP40	Solder, Quick Connect - 0.189" (4.8mm)	Terminating Cover	30.3 mm	22.5 mm	Male Blades, Receptacle	Unfiltered - Commercial		CCC, cURus, ENEC	Panel Mount, Flange, Through Hole, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
