123517-000
ActiveTE Connectivity AMP Connectors

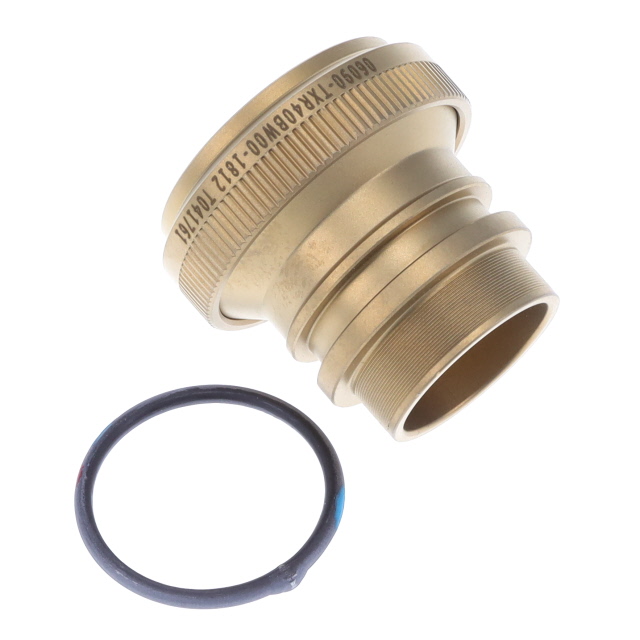

CONN BACKSHELL ADPT SZ19 F M28
Deep-Dive with AI
Search across all available documentation for this part.
123517-000
ActiveTE Connectivity AMP Connectors
CONN BACKSHELL ADPT SZ19 F M28
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 123517-000 |
|---|---|
| Cable Exit | 180 ° |
| Diameter - Outside [diameter] | 1.398 in |
| Diameter - Outside [diameter] | 35.5 mm |
| Features | Tinel Lock |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV |
| Includes | 1 pcs, 1 pcs, 1 pcs, 1 pcs |
| Ingress Protection | Environment Resistant |
| Material | Nickel Aluminum Bronze |
| Shell Size - Insert | 19 |
| Shell Size - Insert | F |
| Shielding | Shielded |
| Thread Size | M28x1 |
| Type | Backshell, Heat Shrink Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 253.38 | |
| 10 | $ 241.22 | |||
123517 Series
CONN BACKSHELL ADPT SZ19 F M28
| Part | Thread Size | Type | Includes | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Shielding | Cable Exit | Material | Ingress Protection | For Use With/Related Products | Features | Shell Size - Insert | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 123517-000 | M28x1 | Backshell, Heat Shrink Adapter | 1 pcs, 1 pcs, 1 pcs, 1 pcs | 1.398 in | 35.5 mm | Shielded | 180 ° | Nickel Aluminum Bronze | Environment Resistant | MIL-DTL-38999 Series III, IV | Tinel Lock | 19 | F |
Description
General part information
123517 Series
Connector Backshell, Heat Shrink Adapter M28x1 19, F
Documents
Technical documentation and resources
No documents available
