IPT1-103-01-S-D-RA

Active

Samtec Inc.

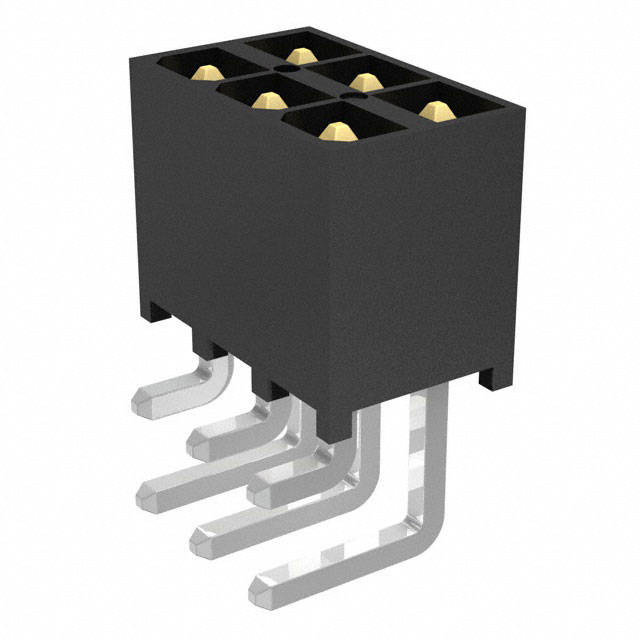

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPT1-103-01-S-D-RA

Active

Samtec Inc.

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT1-103-01-S-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.94 mm
Contact Length - Mating	0.155 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPT1-103 Series

Part	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Color	Contact Material	Shrouding	Number of Rows	Material Flammability Rating	Connector Type	Contact Type	Fastening Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Features	Overall Contact Length
Samtec Inc. IPT1-103-06-S-D	0.695 in	17.65 mm	2.54 mm	0.1 in	Solder	6	30 Áin	0.76 Ám	15.29 mm	0.602 in	2.3 A	775 VAC 1095 VDC	All	0.1 in	2.54 mm	Square	Black	Phosphor Bronze	Shrouded - 4 Wall	2	UL94 V-0	Header	Male Pin	Push-Pull	Tin	2.35 mm	0.093 in	3.94 mm	0.155 in	Gold	Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)
Samtec Inc. IPT1-103-08-L-D	1.09 in	27.69 mm	2.54 mm	0.1 in	Solder	6	10 çin	0.25 çm	25.29 mm	0.996 "	2.3 A	775 VAC 1095 VDC	All	0.1 in	2.54 mm	Square	Black	Phosphor Bronze	Shrouded - 4 Wall	2	UL94 V-0	Header	Male Pin	Push-Pull	Tin	2.4 mm	0.094 in	3.94 mm	0.155 in	Gold	Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)
Samtec Inc. IPT1-103-01-L-D-VS-K-TR			2.54 mm	0.1 in	Solder	6	10 çin	0.25 çm	6.35 mm	0.25 in	2.3 A	775 VAC 1095 VDC	All	0.1 in	2.54 mm	Square	Black	Phosphor Bronze	Shrouded - 4 Wall	2	UL94 V-0	Header	Male Pin	Push-Pull	Tin			3.94 mm	0.155 in	Gold	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Pick and Place
Samtec Inc. IPT1-103-01-L-D-VS			2.54 mm	0.1 in	Solder	6	10 çin	0.25 çm	6.35 mm	0.25 in	2.3 A	775 VAC 1095 VDC	All	0.1 in	2.54 mm	Square	Black	Phosphor Bronze	Shrouded - 4 Wall	2	UL94 V-0	Header	Male Pin	Push-Pull	Tin			3.94 mm	0.155 in	Gold	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)
Samtec Inc. IPT1-103-01-L-D-RA			2.54 mm	0.1 in	Solder	6	10 çin	0.25 çm			2.3 A	775 VAC 1095 VDC	All	0.1 in	2.54 mm	Square	Black	Phosphor Bronze	Shrouded - 4 Wall	2	UL94 V-0	Header	Male Pin	Push-Pull	Tin	2.29 mm	0.09 "	3.94 mm	0.155 in	Gold	Through Hole Right Angle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)
Samtec Inc. IPT1-103-02-L-D		0.47 "	2.54 mm	0.1 in	Solder	6	10 çin	0.25 çm	9.3 mm	0.366 in	2.3 A	775 VAC 1095 VDC	All	0.1 in	2.54 mm	Square	Black	Phosphor Bronze	Shrouded - 4 Wall	2	UL94 V-0	Header	Male Pin	Push-Pull	Tin	2.64 mm	0.104 in	3.94 mm	0.155 in	Gold	Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)		11.94 mm
Samtec Inc. IPT1-103-01-L-D	0.335 in	8.51 mm	2.54 mm	0.1 in	Solder	6	10 çin	0.25 çm	6.35 mm	0.25 in	2.3 A	775 VAC 1095 VDC	All	0.1 in	2.54 mm	Square	Black	Phosphor Bronze	Shrouded - 4 Wall	2	UL94 V-0	Header	Male Pin	Push-Pull	Tin	2.16 mm	0.085 in	3.94 mm	0.155 in	Gold	Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)
Samtec Inc. IPT1-103-01-S-D-RA			2.54 mm	0.1 in	Solder	6	30 Áin	0.76 Ám			2.3 A	775 VAC 1095 VDC	All	0.1 in	2.54 mm	Square	Black	Phosphor Bronze	Shrouded - 4 Wall	2	UL94 V-0	Header	Male Pin	Push-Pull	Tin	2.29 mm	0.09 "	3.94 mm	0.155 in	Gold	Through Hole Right Angle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	69	$ 3.46

Description

General part information

IPT1-103 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
