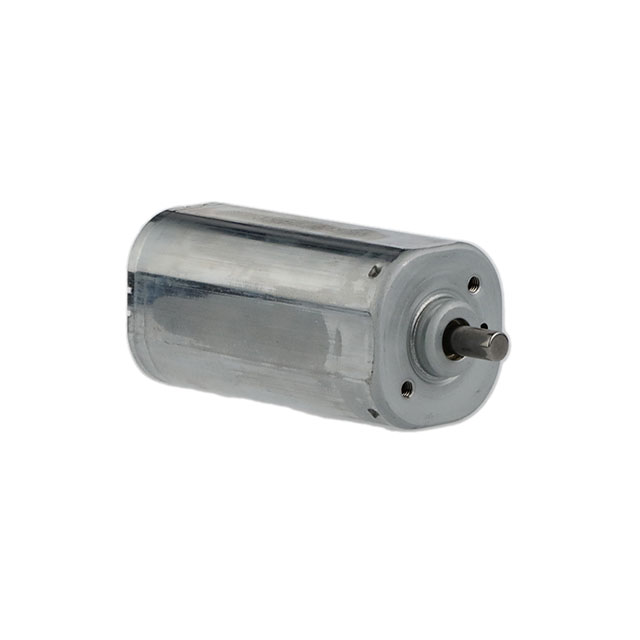

SE30R2NTCD

Active

NMB TECHNOLOGIES

STANDARD MOTOR 5300 RPM 24V

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

STANDARD MOTOR 5300 RPM 24V

Technical Specifications

Parameters and characteristics for this part

STANDARD MOTOR 5300 RPM 24V

Part	Voltage - Rated	Motor Type	RPM	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Weight	Weight	Mounting Hole Spacing	Mounting Hole Spacing	Function	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Type	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
NMB TECHNOLOGIES SE30R2NTCD	24 VDC	Brushed	5300 RPM	0.197 in	5 mm	13 mm	0.512 in	210.01 g	0.463 lb	22 mm	0.866 in	Standard	70 mNm	9.91 oz-in	DC Motor	Connector	1.181 in	1.181 in	30 mm	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 5300 RPM 24VDC
