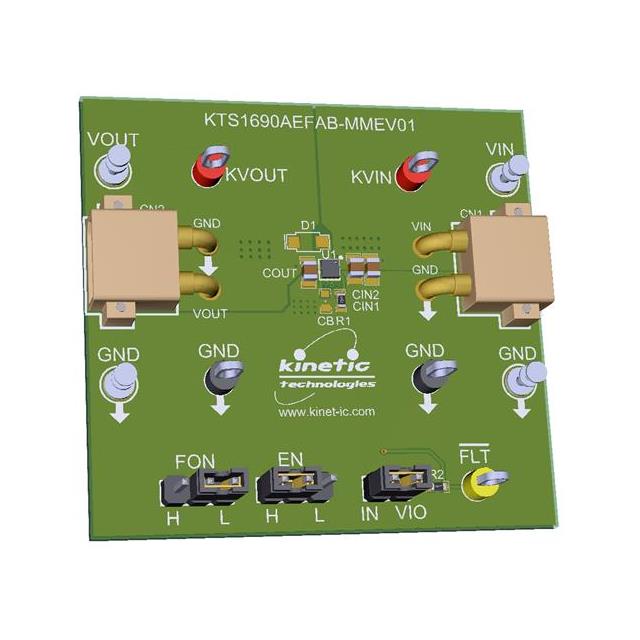

KTS1690AEGAA-MMEV01

Active

Kinetic Technologies

EVAL BOARD FOR KTS1690A

Search across all available documentation for this part.

Active

Kinetic Technologies

EVAL BOARD FOR KTS1690A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTS1690AEGAA-MMEV01	KTS1690 Series

Contents	Board(s)	Board(s)
Embedded	False	False
Function	Power Distribution Switch (Load Switch)	Power Distribution Switch (Load Switch)
Mounting Type	-	Surface Mount
Number of Circuits	-	1
Primary Attributes [Max]	5.5 V	5.5 V
Primary Attributes [Min]	2.5 V	2.5 V
Supplier Device Package	-	1.98
Supplier Device Package	-	16-WLCSP
Supplier Device Package	-	1.98
Technology	-	Internal Switch
Type	Power Management	Power Management
Utilized IC / Part	KTS1690A	KTS1690A
Voltage - Clamping	-	5.5 V
Voltage - Clamping	-	2.5 V

USB VBUS ISOURCE LOAD SWITCH WIT

Part	Voltage - Clamping [Max]	Voltage - Clamping [Min]	Number of Circuits	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Technology	Mounting Type	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Contents	Function	Type	Embedded
Kinetic Technologies KTS1690AEGAA-TA	5.5 V	2.5 V	1	1.98	16-WLCSP	1.98	Internal Switch	Surface Mount
Kinetic Technologies KTS1690AEGAA-MMEV01									5.5 V	2.5 V	KTS1690A	Board(s)	Power Distribution Switch (Load Switch)	Power Management

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.60

General part information

KTS1690A - Power Distribution Switch (Load Switch) Power Management Evaluation Board
