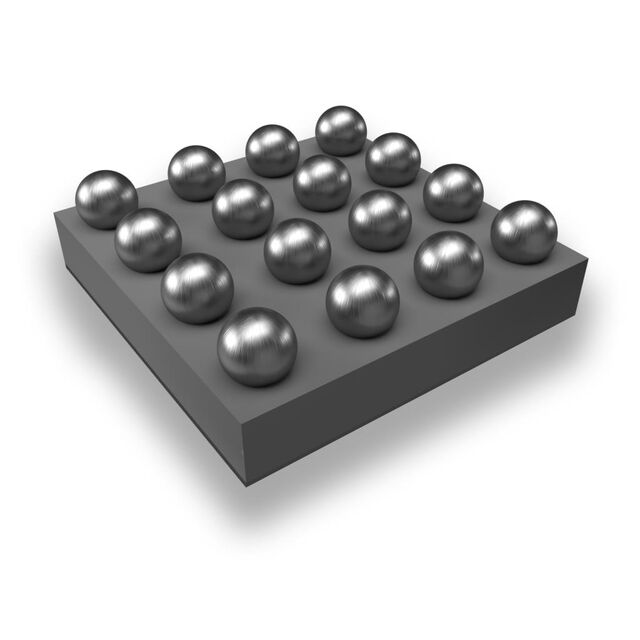

KTS1690AEGAA-TA

Active

Kinetic Technologies

USB VBUS ISOURCE LOAD SWITCH WIT

Search across all available documentation for this part.

Active

Kinetic Technologies

USB VBUS ISOURCE LOAD SWITCH WIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTS1690AEGAA-TA	KTS1690 Series

Contents	-	Board(s)
Embedded	-	False
Function	-	Power Distribution Switch (Load Switch)
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Primary Attributes	-	5.5 V
Primary Attributes	-	2.5 V
Supplier Device Package	16-WLCSP	16-WLCSP
Supplier Device Package [x]	1.98	1.98
Supplier Device Package [y]	1.98	1.98
Technology	Internal Switch	Internal Switch
Type	-	Power Management
Utilized IC / Part	-	KTS1690A
Voltage - Clamping [Max]	5.5 V	5.5 V
Voltage - Clamping [Min]	2.5 V	2.5 V

USB VBUS ISOURCE LOAD SWITCH WIT

Part	Voltage - Clamping [Max]	Voltage - Clamping [Min]	Number of Circuits	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Technology	Mounting Type	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Contents	Function	Type	Embedded
Kinetic Technologies KTS1690AEGAA-TA	5.5 V	2.5 V	1	1.98	16-WLCSP	1.98	Internal Switch	Surface Mount
Kinetic Technologies KTS1690AEGAA-MMEV01									5.5 V	2.5 V	KTS1690A	Board(s)	Power Distribution Switch (Load Switch)	Power Management

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB VBUS ISOURCE LOAD SWITCH WIT
