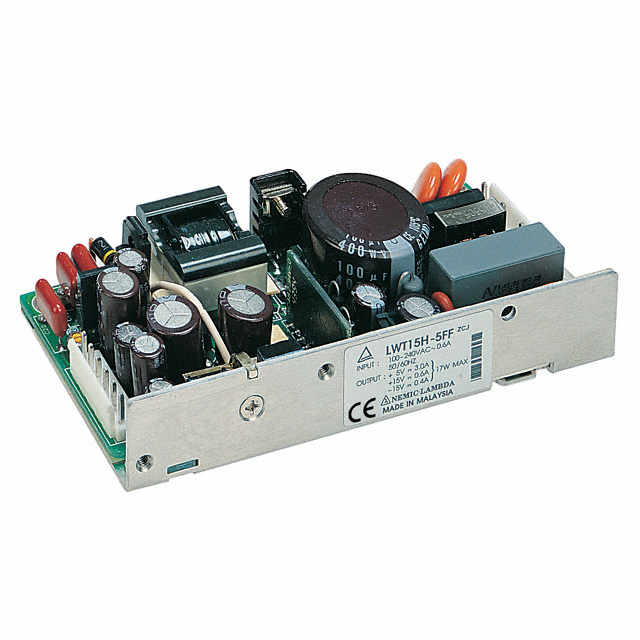

LWT15H-5FF
ObsoleteTDK-LAMBDA
AC/DC CONVERTER 5V +/-15V 15W
Deep-Dive with AI
Search across all available documentation for this part.
LWT15H-5FF
ObsoleteTDK-LAMBDA
AC/DC CONVERTER 5V +/-15V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LWT15H-5FF |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 3 A |
| Current - Output 2 | 600 mA |
| Current - Output 3 | 400 mA |
| Efficiency | 72 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 128 mm |
| Size / Dimension [x] | 5.03 in |
| Size / Dimension [y] | 59.9 mm |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 25 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 3 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 157.75 | |
| 10 | $ 140.97 | |||
Description
General part information
LWT15H Series
Open Frame AC DC Converters 3 Output 5V 15V -15V 85 ~ 265 VAC Input
