Description
General part information

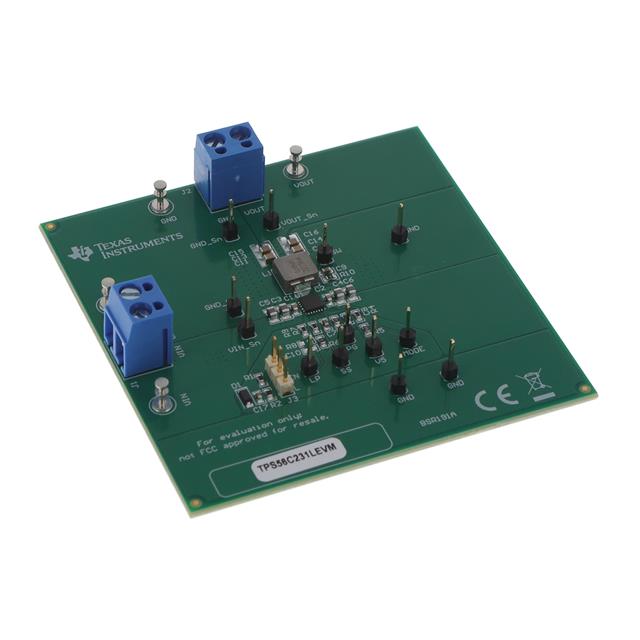

TPS56C231LEVM
TPS56C231L - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS56C231LEVM |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 12 A |
| Frequency - Switching | 800 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS56C231L |
| Voltage - Input (Maximum) | 17 V |
| Voltage - Input (Minimum) | 4.5 V |
| Voltage - Output | 1.2 V |
