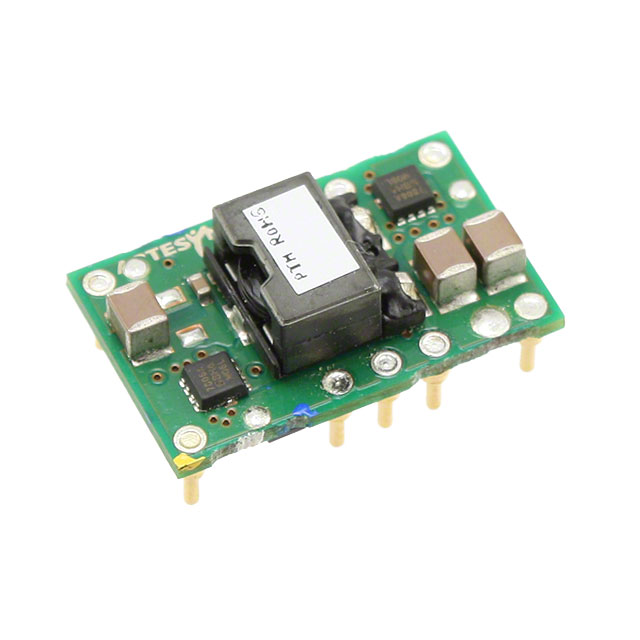

PTH03060WAD

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 0.8-2.5V 25W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 0.8-2.5V 25W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 0.8-2.5V 25W

Part	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Efficiency	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Applications
ARTESYN / Advanced Energy PTH03060WAD	2.95 V	25 W	2.5 V	0.8 V	85 °C	-40 °C	Remote On/Off, SCP, UVLO	10 A	1	1 in	0.62 "	25.4 mm	0.35 "	15.7 mm	8.9 mm	Non-Isolated PoL Module	93 %	10-DIP Module	Through Hole	3.65 V	ITE (Commercial)
ARTESYN / Advanced Energy PTH03060WAZ	2.95 V	25 W	2.5 V	0.8 V	85 °C	-40 °C	Remote On/Off, SCP, UVLO	10 A	1	1 in	0.62 "	25.4 mm	0.35 "	15.7 mm	8.9 mm	Non-Isolated PoL Module	93 %	10-SMD Module	Surface Mount	3.65 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	72	$ 15.50

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 10A 2.95V - 3.65V Input

Technical documentation and resources

No documents available
