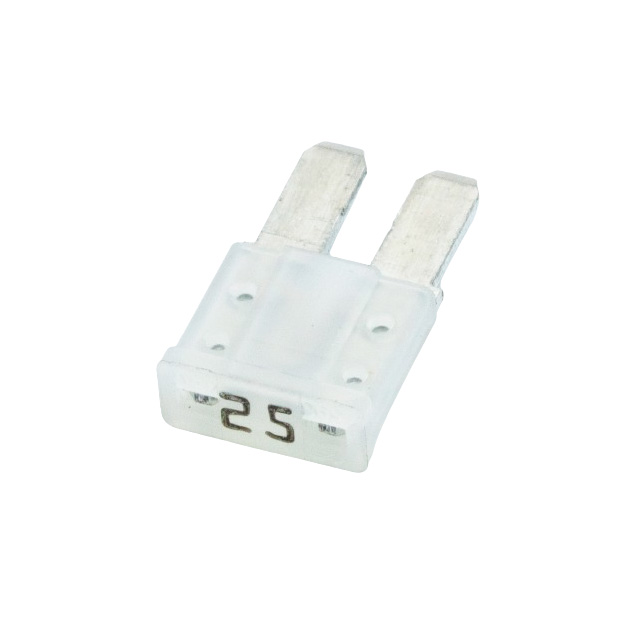

APT-25A
ActiveOptiFuse
FUSE AUTO 25A 48VDC BLADE MICRO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APT-25A
ActiveOptiFuse
FUSE AUTO 25A 48VDC BLADE MICRO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APT-25A |
|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Clear |
| Current Rating (Amps) | 25 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -45 °C |
| Package / Case | Blade, Micro |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.358 in |
| Size / Dimension [x] | 9.1 mm |
| Size / Dimension [y] | 0.15 " |
| Size / Dimension [y] | 3.8 mm |
| Size / Dimension [z] | 7.9 mm |
| Size / Dimension [z] | 0.311 " |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.83 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.36 | |||
Description
General part information
APT-25 Series
25 A AC 48 V DC Fuse Automotive Requires Holder Blade, Micro
