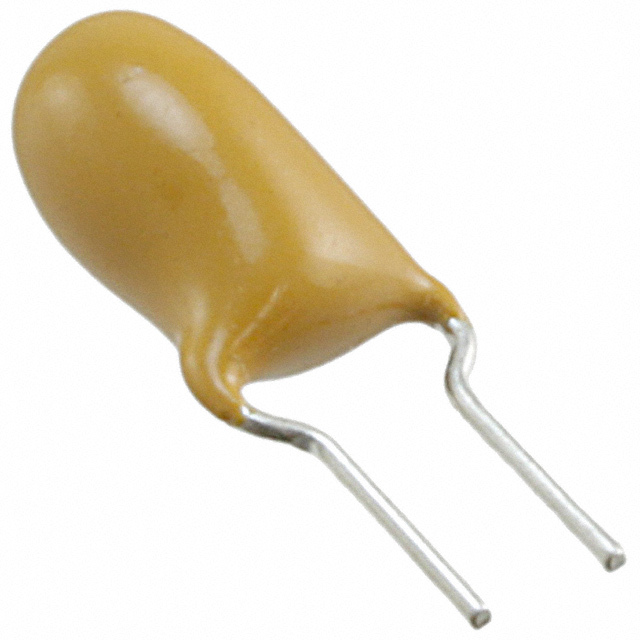

T355G106K035AT

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 10% +TOL, 10% -TOL, 10UF, THROUGH HOLE MOUNT, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 10% +TOL, 10% -TOL, 10UF, THROUGH HOLE MOUNT, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	T355G106K035AT

Capacitance	10 µF
ESR (Equivalent Series Resistance)	2 Ohms
Features	General Purpose
Height - Seated (Max) [Max]	11.4 mm
Height - Seated (Max) [Max]	0.449 in
Lead Spacing	3.18 mm
Lead Spacing	0.125 in
Manufacturer Size Code	G
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.25 in
Size / Dimension [diameter]	6.35 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

Part	Capacitance	Mounting Type	Voltage - Rated	Features	Tolerance	Type	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)
KEMET T355G106K035AS	10 µF	Through Hole	35 V	General Purpose	10 %	Conformal Coated	Radial	0.248 in	6.3 mm	11.4 mm	0.449 in	G	3.18 mm	0.125 in	-55 °C	125 °C	2 Ohm
KEMET T355G475J050AS	4.7 µF	Through Hole	50 VDC	General Purpose	5 %	Conformal Coated	Radial	0.248 in	6.3 mm	11.4 mm	0.449 in	G	3.18 mm	0.125 in	-55 °C	125 °C	2.5 Ohm
KEMET T355G475M050AT7301	4.7 µF	Through Hole	50 VDC	General Purpose	20 %	Conformal Coated	Radial	0.248 in	6.3 mm	11.4 mm	0.449 in	G	3.18 mm	0.125 in	-55 °C	125 °C	2.5 Ohm
KEMET T355G106K035AT	10 µF	Through Hole	35 V	General Purpose	10 %	Conformal Coated	Radial	0.25 in	6.35 mm	11.4 mm	0.449 in	G	3.18 mm	0.125 in	-55 °C	125 °C	2 Ohms
