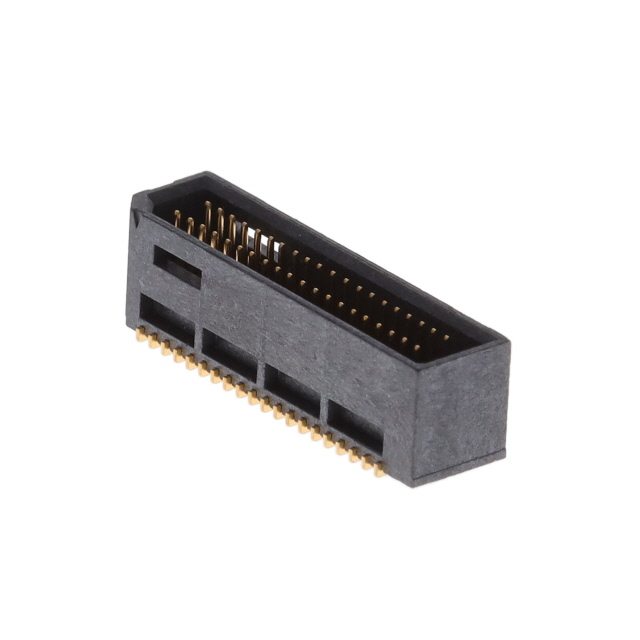

TEMS-120-02-03.0-H-D-K-TR

Active

Samtec Inc.

CONN HEADER SMD 40POS 0.8MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER SMD 40POS 0.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	TEMS-120-02-03.0-H-D-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	5.38 mm
Insulation Height	0.212 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	6 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Row Spacing - Mating [x]	1.6 mm
Row Spacing - Mating [x]	0.063 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	235 VAC, 330 VDC

Part	Insulation Color	Features	Shrouding	Mated Stacking Heights	Contact Material	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Shape	Number of Rows	Current Rating (Amps)	Voltage Rating	Termination	Connector Type	Insulation Height	Insulation Height
Samtec Inc. TEMS-120-02-03.0-FG-D-K-TR	Black	Pick and Place	Shrouded - 4 Wall	6 mm	Phosphor Bronze	All	1.6 mm	0.063 in	Liquid Crystal Polymer (LCP)	40	3 µin	0.076 µm	Gold	Push-Pull	Surface Mount	3 µin	0.076 µm	0.031 in	0.8 mm	Male Pin	-55 °C	125 °C	Gold	Circular	2	2.9 A	235 VAC 330 VDC	Solder	Header	5.38 mm	0.212 in
Samtec Inc. TEMS-120-02-03.0-H-D-K-TR	Black	Pick and Place	Shrouded - 4 Wall	6 mm	Phosphor Bronze	All	1.6 mm	0.063 in	Liquid Crystal Polymer (LCP)	40	3 µin	0.076 µm	Gold	Push-Pull	Surface Mount	30 Áin	0.76 Ám	0.031 in	0.8 mm	Male Pin	-55 °C	125 °C	Gold	Circular	2	2.9 A	235 VAC 330 VDC	Solder	Header	5.38 mm	0.212 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 40 position 0.031" (0.80mm)
