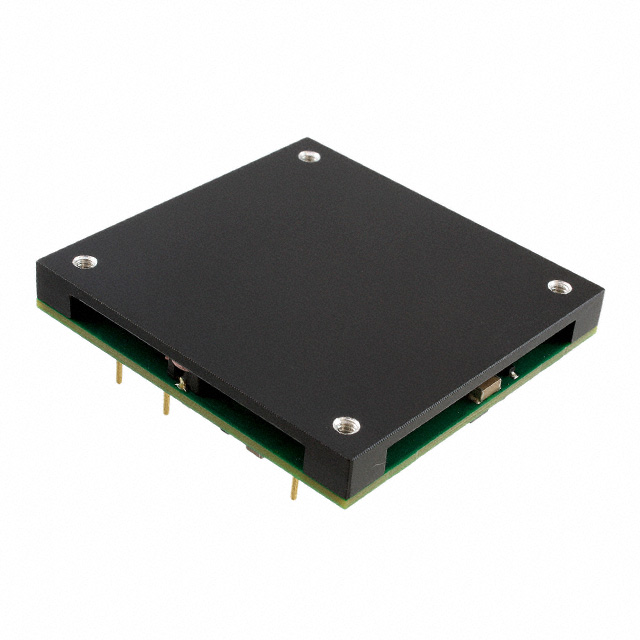

EMH-54/3-Q48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 54V 162W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EMH-54/3-Q48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 54V 162W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EMH-54/3-Q48NB-C | EMH-54/3 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active Low, Enable |
| Current - Output (Max) [Max] | 3 A | 3 A |
| Efficiency | 91.5 % | 91.5 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OTP, Remote On/Off, OVP, UVLO, OCP, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module, 5 Leads | 9-DIP Module, 9-DIP Module, 5 Leads |
| Power (Watts) | 162 W | 162 W |
| Size / Dimension | - | 10.9 mm |
| Size / Dimension | - | 58.4 mm |
| Size / Dimension [x] | 2.4 in | 2.4 in |
| Size / Dimension [x] | 61 mm | 61 mm |
| Size / Dimension [y] | 58.4 mm | 58.4 mm |
| Size / Dimension [y] | 2.3 " | 2.3 " |
| Size / Dimension [z] | 12.7 mm | 12.7 mm |
| Size / Dimension [z] | 0.5 in | 0.43 - 0.5 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V | 72 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 54 V | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
EMH-54/3 Series
DC DC CONVERTER 54V 162W
| Part | Applications | Power (Watts) | Voltage - Isolation | Type | Voltage - Input (Min) [Min] | Number of Outputs | Package / Case | Control Features | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Efficiency | Mounting Type | Current - Output (Max) [Max] | Features | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. EMH-54/3-Q48N-C | ITE (Commercial) | 162 W | 2250 VDC | Isolated Module | 18 V | 1 | 9-DIP Module | Active Low, Enable | 72 V | 85 °C | -40 °C | 54 V | 61 mm | 0.43 " | 2.4 in | 10.9 mm | 58.4 mm | 2.3 " | 91.5 % | Through Hole | 3 A | OCP, OTP, OVP, Remote On/Off, UVLO | ||
Murata Power Solutions Inc. EMH-54/3-Q48NB-C | ITE (Commercial) | 162 W | 2250 VDC | Isolated Module | 18 V | 1 | 9-DIP Module, 5 Leads | Active Low, Enable | 72 V | 85 °C | -40 °C | 54 V | 61 mm | 0.5 in | 2.4 in | 2.3 " | 91.5 % | Through Hole | 3 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.7 mm | 58.4 mm |
Description
General part information
EMH-54/3 Series
Isolated Module DC DC Converter 1 Output 54V 3A 18V - 72V Input
